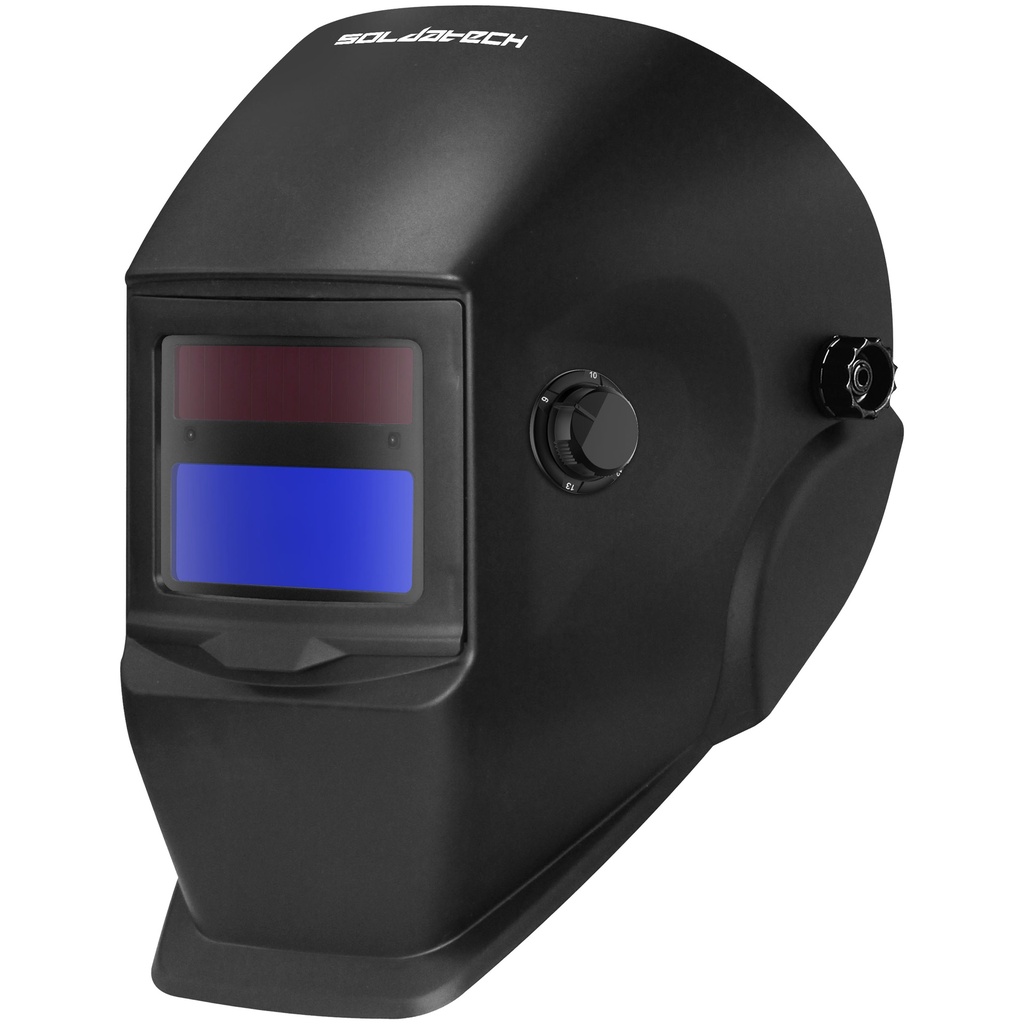

EWH2

The EasyClear welding helmet from Soldatech provides welders with the necessary protection and clear visibility for efficient work. Its lightweight design and advanced lens technology ensure clear vision and high wearing comfort. The helmet operates on a solar cell and has no battery, making it even lighter.

Key features:

Lightweight: no battery, only a solar cell, for extra comfort and reduced fatigue during long use.

Clear vision: advanced lens technology provides sharp visibility and reduces eye strain.

Durable: made of strong nylon for protection in demanding work environments.

Certified safety standards – CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1 compliant.

Specifications:

  • Optical class
    1/1/1/2

  • Viewing area
    96 x 40 mm

  • Cartridge size
    110 x 90 x 9mm

  • Arc sensor
    2

  • Light state
    DIN 3.5

  • Dark state
    DIN 9 ~ 13

  • Shade control
    external

  • Shade control
    variable shade

  • Power on/off
    automatic on/off

  • Sensitivity control
    low-high by infinitely dial knob

  • Protection (UV/IR)
    DIN 16

  • Power supply
    solar cell

  • Switching time (light to dark)
    1/16000 sec.

  • Delay time (dark to light)
    0.1 - 1.0 sec. by infinitely dial knob

  • Low amperage TIG rated
    ≥10 amps (DC); ≥10 amps (AC)

  • Low battery indicator
    -

  • Battery capacity test
    -

  • Grinding
    Yes

  • Operating temperature
    -10℃~＋55℃

  • Storage temperature
    -20°C ~ +70°C

  • Helmet material
    High impact resistance nylon

  • MMA welding applications
    SMAW

  • TIG welding applications
    GTAW-DC / GTAW-AC / GTAW-P DC / GTAW-P AC

  • MIG welding application
    GMAW (MIG/MAG) / GMAW-P

  • Cutting welding application
    PAC / CAC-A

  • Other welding application
    PAW

  • Dimensions
    340.0mm x240.0mm x220.0mm

  • Weight
    0.45Kg

Strongpoints:

  • Lightweight
  • Clear lens technology for ultimate sight and brightness
  • High impact nylon material

Downloads:

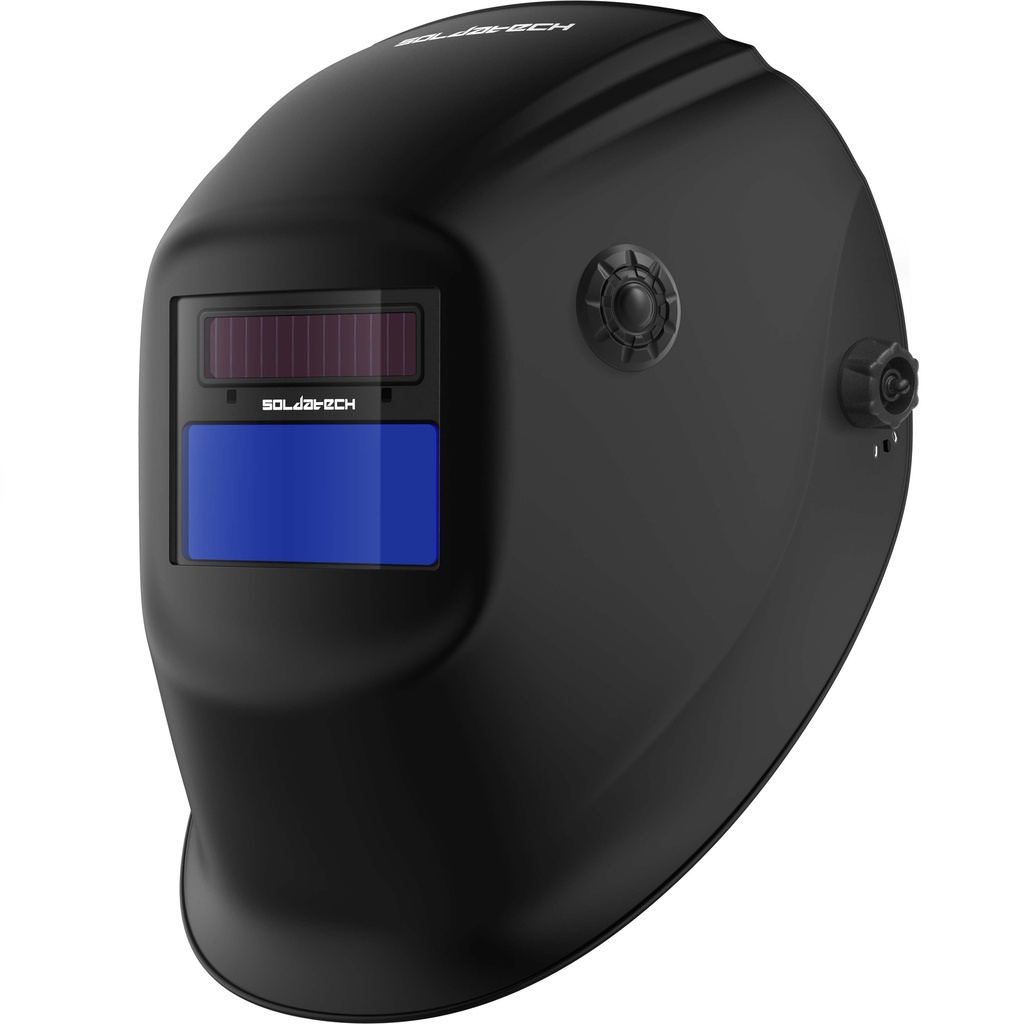

EWH3

The SmartClear EWH3 welding helmet provides reliable protection and clear visibility for various welding tasks, including TIG welding. The 98x44mm viewing area provides a wide and sharp field of vision, while the DIN 3 light filtration enhances brightness before welding. The helmet is powered by a solar cell with a backup battery, ensuring consistent auto-darkening. An external push button allows easy welding and Grind mode selection, even with gloves. Designed for comfort, the four-strap headgear distributes weight evenly for a secure fit. The flexible nylon shell is both lightweight and impact-resistant.

Key features:

Lightweight: reduces strain during long use.

Suitable for TIG welding: minimum 5A TIG sensitivity.

Clear lens technology: sharp vision and brightness.

Flexible nylon shell: durable, flexible, and impact-resistant.

External push button: easy mode selection with gloves.

Certified safety standards – CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1 compliant.

Specifications:

  • Optical class
    1/1/1/2

  • Viewing area
    98 x 44 mm

  • Cartridge size
    110 x 90 x 9mm

  • Arc sensor
    2

  • Light state
    DIN 3

  • Dark state
    DIN 7 ~ 13

  • Shade control
    internal

  • Shade control
    variable shade

  • Power on/off
    automatic on/off

  • Sensitivity control
    low-high by infinitely dial knob

  • Protection (UV/IR)
    DIN 16

  • Power supply
    solar cell, 1x CR2450 lithium battery replaceable

  • Switching time (light to dark)
    1/16000 sec.

  • Delay time (dark to light)
    0.1 - 1.0 sec. by infinitely dial knob

  • Low amperage TIG rated
    ≥ 5 amps (DC); ≥ 5 amps (AC)

  • Grinding
    Yes

  • Operating temperature
    -10℃~＋55℃

  • Storage temperature
    -20°C ~ +70°C

  • Helmet material
    High impact resistance nylon

  • Battery capacity test
    Yes

  • Low battery indicator
    Yes

  • MMA welding applications
    SMAW

  • TIG welding applications
    GTAW-DC / GTAW-AC / GTAW-P DC / GTAW-P AC

  • MIG welding application
    GMAW (MIG/MAG) / GMAW-P

  • Cutting welding application
    PAC / CAC-A

  • Other welding application
    PAW

  • Dimensions
    350.0mm x270.0mm x220.0mm

  • Weight
    0.515Kg

Strongpoints:

  • Lightweight
  • Suitable for TIG welding
  • Clear lens technology for ultimate sight and brightness
  • High impact flexible nylon material
  • External push button for easy welding mode selection


Downloads:

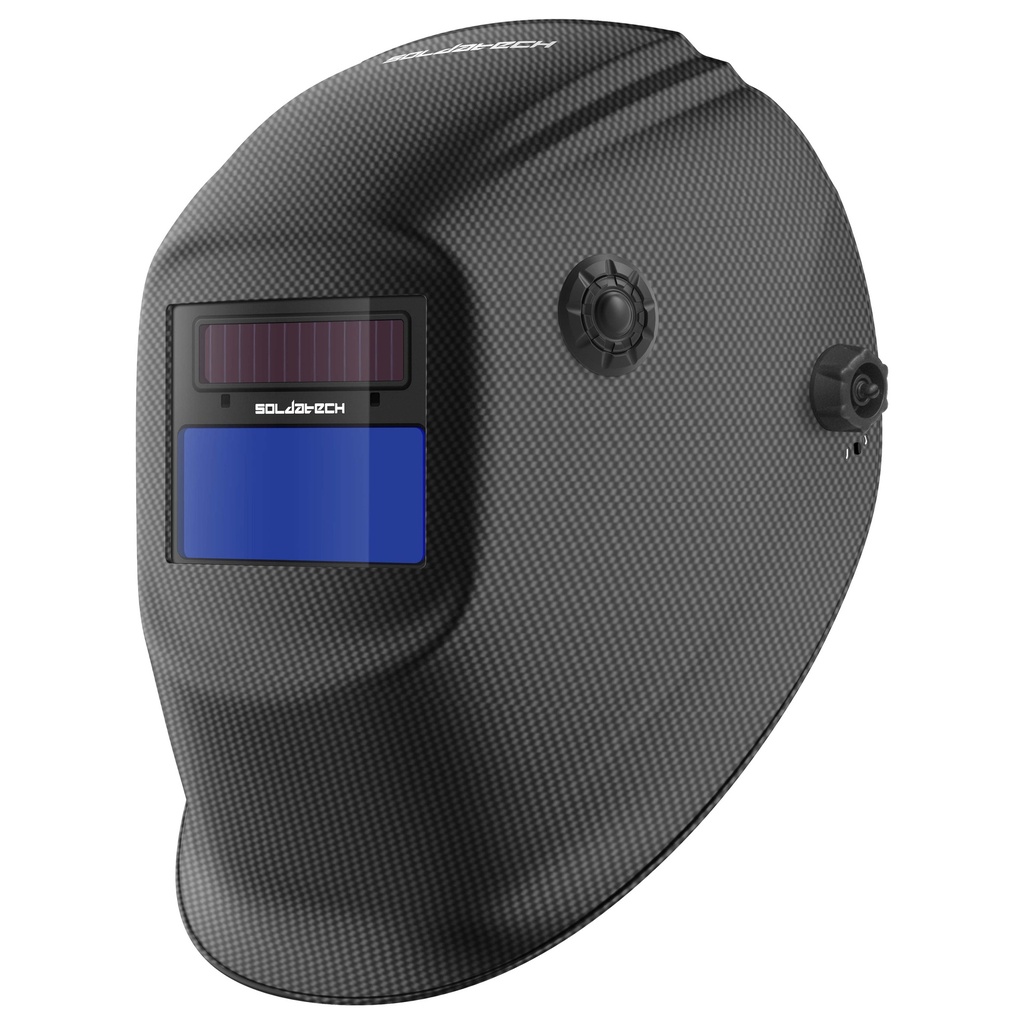

EWH3C

The SmartCLear EWH3C welding helmet provides reliable protection and clear visibility for various welding tasks, including TIG welding. The 98x44mm viewing area ensures a wide and sharp field of vision, while the DIN 3 light state improves brightness before welding. The helmet is powered by a solar cell with a backup battery, ensuring consistent auto-darkening. An external push button allows easy welding and Grind mode selection, even with gloves. Designed for comfort, the four-strap headgear distributes weight evenly for a secure fit. The flexible nylon shell is both lightweight and impact-resistant, featuring a sleek carbon graphic design that makes you look as sharp as your welding skills.

Key features:

Lightweight: reduces strain during long use.

Suitable for TIG welding: minimum 5A TIG sensitivity.

Clear lens technology: sharp vision and brightness.

Flexible nylon shell: durable, flexible, and impact-resistant.

External push button: easy mode selection with gloves.

Sleek carbon graphic design: makes you look as sharp as your welding skills.

Certified safety standards – CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1 compliant.

Specifications:

  • Optical class
    1/1/1/2

  • Viewing area
    98 x 44 mm

  • Cartridge size
    110 x 90 x 9mm

  • Arc sensor
    2

  • Light state
    DIN 3

  • Dark state
    DIN 7 ~ 13

  • Shade control
    internal

  • Shade control
    variable shade

  • Power on/off
    automatic on/off

  • Sensitivity control
    low-high by infinitely dial knob

  • Protection (UV/IR)
    DIN 16

  • Power supply
    solar cell, 1x CR2450 lithium battery replaceable

  • Switching time (light to dark)
    1/16000 sec.

  • Delay time (dark to light)
    0.1 - 1.0 sec. by infinitely dial knob

  • Low amperage TIG rated
    ≥ 5 amps (DC); ≥ 5 amps (AC)

  • Grinding
    Yes

  • Operating temperature
    -10℃~＋55℃

  • Storage temperature
    -20°C ~ +70°C

  • Helmet material
    High impact resistance nylon

  • Print
    Carbon

  • Battery capacity test
    Yes

  • Low battery indicator
    Yes

  • MMA welding applications
    SMAW

  • TIG welding applications
    GTAW-DC / GTAW-AC / GTAW-P DC / GTAW-P AC

  • MIG welding application
    GMAW (MIG/MAG) / GMAW-P

  • Cutting welding application
    PAC / CAC-A

  • Other welding application
    PAW

  • Dimensions
    330.0mm x240.0mm x220.0mm

  • Weight
    0.53Kg

Strongpoints:

  • Lightweight
  • Excellent low amperage TIG response
  • Clear lens technology for ultimate sight and brightness
  • High impact nylon material
  • Carbon design


Downloads:

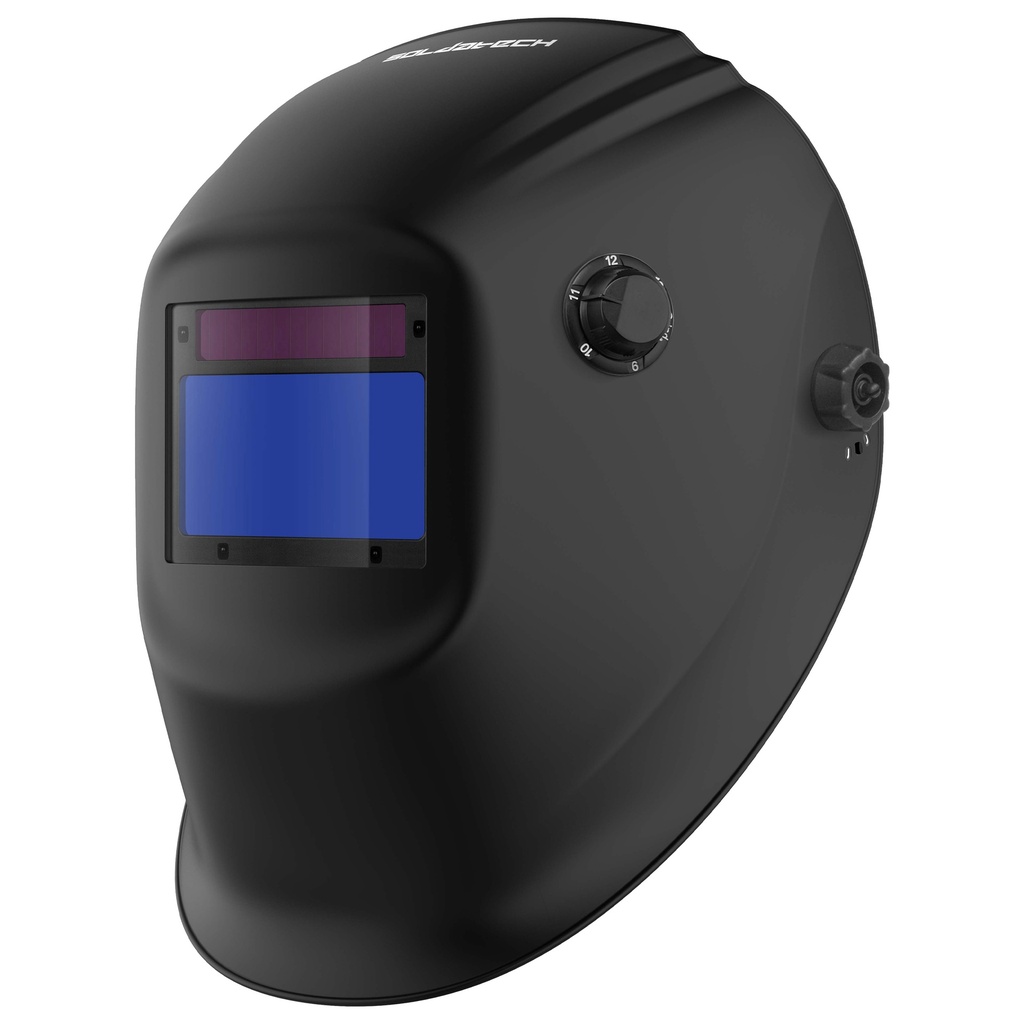

EWH4

The EWH4 TopClear welding helmet provides reliable protection and clear visibility for various welding applications and is ideal for TIG welding. The 96 x 53mm viewing area ensures a sharp and wide field of vision, while the DIN 3.5 light state offers clear visibility before welding. Equipped with four independent arc sensors, the helmet provides fast auto-darkening activation, even at low amperages. With a minimum sensitivity of 5A and a switching speed of 1/25,000 sec, it responds instantly to the arc for optimal eye protection. A solar cell with a backup battery ensures reliable performance, while an external adjustment dial allows easy shade control. The four-strap headgear ensures a secure and comfortable fit. The high-impact nylon shell is lightweight and Flexible, offering long-lasting protection.

Key features:

4 independent arc sensors deliver fast and reliable auto-darkening activation.

TIG detection from 5A (AC/DC) – excellent response for low-amperage welding.

Clear lens technology – ultimate sight and brightness.

High-impact nylon material – strong flexible and durable.

Large viewing area (96 x 53mm) – wide field of vision.

Fast switching speed (1/25,000 sec) – instant reaction for optimal eye protection.

Certified safety standards – CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1 compliant.

Specifications:

  • Optical class
    1/1/1/2

  • Viewing area
    96 x 53 mm

  • Cartridge size
    110 x 90 x 9mm

  • Arc sensor
    4

  • Light state
    DIN 3.5

  • Dark state
    DIN 9 ~ 13

  • Shade control
    external

  • Shade control
    variable shade

  • Power on/off
    automatic on/off

  • Sensitivity control
    low-high by infinitely dial knob

  • Protection (UV/IR)
    DIN 16

  • Power supply
    solar cell, 1x CR2450 lithium battery replaceable

  • Low battery indicator
    Yes

  • Switching time (light to dark)
    1/25000 sec.

  • Delay time (dark to light)
    0.1 - 1.0 sec. by infinitely dial knob

  • Low amperage TIG rated
    ≥ 5 amps (DC); ≥ 5 amps (AC)

  • Grinding
    Yes

  • Battery capacity test
    Yes

  • Operating temperature
    -10℃~＋55℃

  • Storage temperature
    -20°C ~ +70°C

  • Helmet material
    High impact resistance nylon

  • MMA welding applications
    SMAW

  • TIG welding applications
    GTAW-DC / GTAW-AC / GTAW-P DC / GTAW-P AC

  • MIG welding application
    GMAW (MIG/MAG) / GMAW-P

  • Cutting welding application
    PAC / CAC-A

  • Other welding application
    PAW

  • Dimensions
    350.0mm x250.0mm x220.0mm

  • Weight
    0.54Kg

Strongpoints:

  • 4 independent arc sensors
  • Excellent low amperage TIG response
  • Clear lens technology for ultimate visibility and brightness
  • High impact nylon material
  • Big viewing area 96x53mm


Downloads:

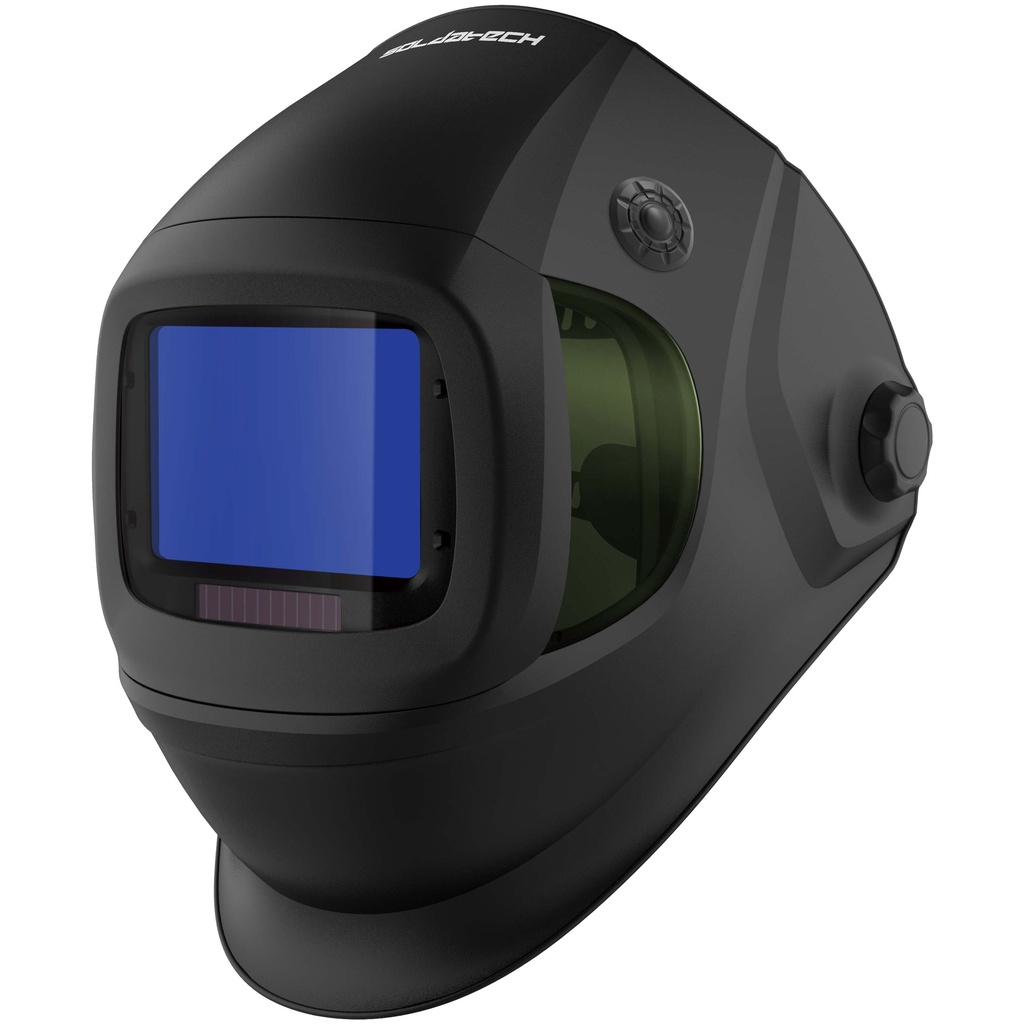

EWH5

The EWH5 Side Clear welding helmet provides a wide field of vision and enhanced comfort, making it ideal for TIG welding and precision work.  The 107 x 75mm viewing area ensures clear visibility, while the side lenses improve peripheral awareness and can be covered when needed. Equipped with four independent arc sensors, the helmet delivers fast auto-darkening activation, even at low amperages from 2A (AC/DC). The digital display allows precise filter adjustments, and the DIN 4 light state ensures brightness before welding. The adjustable grind mode (DIN 5-8) makes it also suitable for plasma cutting. With a fast switching speed of 1/25,000 sec, the lens reacts instantly to the arc for optimal eye protection. A solar cell with two CR2450 batteries ensures reliable operation. An external push button allows quick switching between welding and grind mode, even with gloves. The five-strap headgear distributes weight evenly for a secure and comfortable fit. The high-impact nylon shell provides durability while remaining lightweight.

Key features:

4 independent arc sensors deliver fast and reliable auto-darkening activation.

TIG detection from 2A (AC/DC) – excellent response for low-amperage welding.

Clear lens technology – ultimate sight and brightness.

Side lenses enhanced peripheral vision, with optional covers.

Digital display – easy and precise filter adjustments.

Fast switching speed (1/25,000 sec) – instant reaction for optimal eye protection.

External push button – quick switching between welding and grinding mode.

Certified safety standards – CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1 compliant.

Specifications:

  • Optical class
    1/1/1/1

  • Viewing area
    107 x 75 mm

  • Cartridge size
    156 x 123 x33 mm

  • Arc sensor
    4

  • Light state
    DIN 4

  • Cutting shade
    5 ~ 8

  • Dark state
    DIN 9 ~ 13

  • Grinding
    Yes

  • Grind state
    DIN 4

  • Shade control
    internal

  • Shade control
    digital display control

  • Power on/off
    automatic on/off

  • Sensitivity control
    low-high by infinitely dial knob

  • Protection (UV/IR)
    DIN 16

  • Power supply
    solar cell, 2× CR2450 lithium battery replaceable

  • Battery capacity test
    -

  • Low battery indicator
    Yes, Digital display

  • Switching time (light to dark)
    1/25000 sec.

  • Delay time (dark to light)
    0.1 - 1.0 sec. by infinitely dial knob

  • Low amperage TIG rated
    ≥ 2 amps (DC); ≥ 2 amps (AC)

  • Operating temperature
    -10℃~＋55℃

  • Storage temperature
    -20°C ~ +70°C

  • Helmet material
    High impact resistance nylon

  • MMA welding applications
    SMAW

  • TIG welding applications
    GTAW-DC / GTAW-AC / GTAW-P DC / GTAW-P AC

  • MIG welding application
    GMAW (MIG/MAG) / GMAW-P

  • Cutting welding application
    PAC / CAC-A / OC

  • Other welding application
    PAW / OFW

  • Dimensions
    330.0mm x260.0mm x220.0mm

  • Weight
    0.635Kg

Strongpoints:

  • 4 independent arc sensors
  • Switches with minimum 2 amps TIG DC and AC amperage
  • Clear lens technology for ultimate sight and brightness
  • Side lenses
  • Digital display

Downloads:

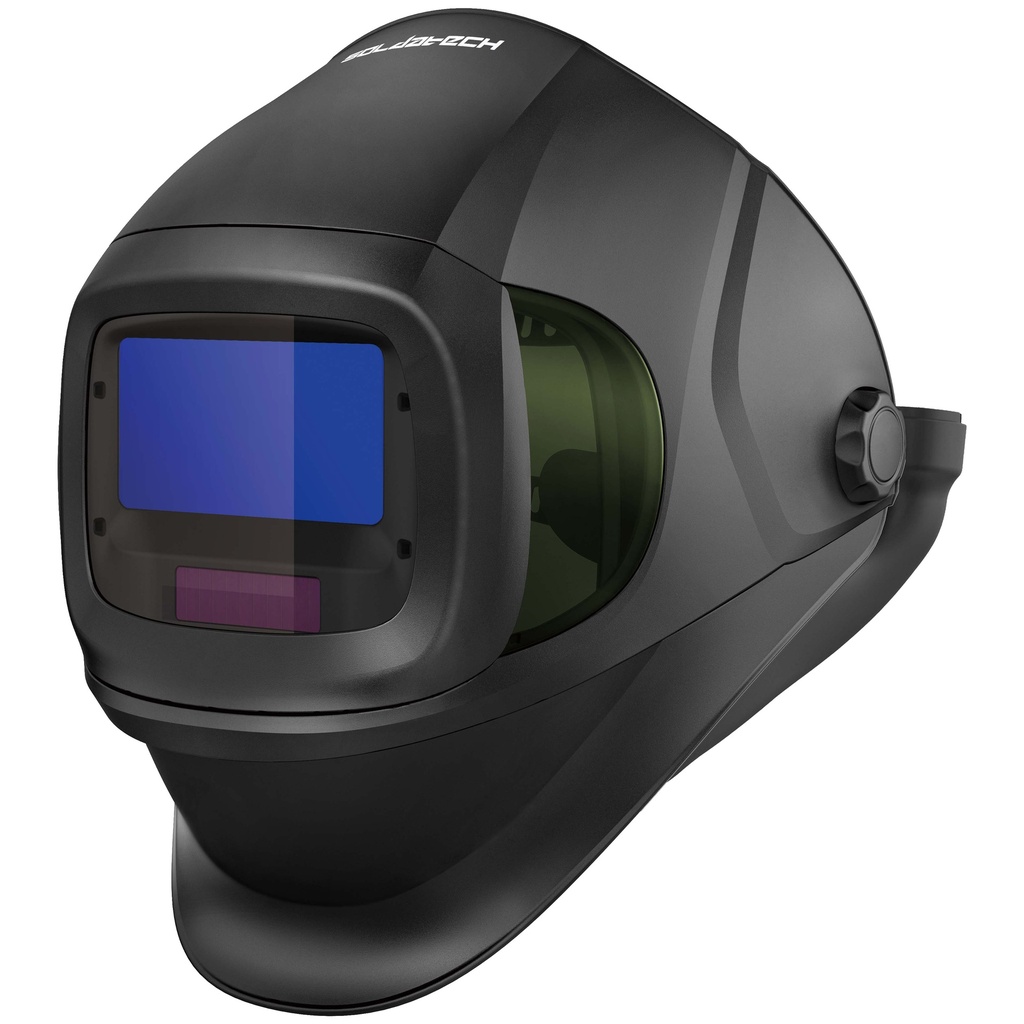

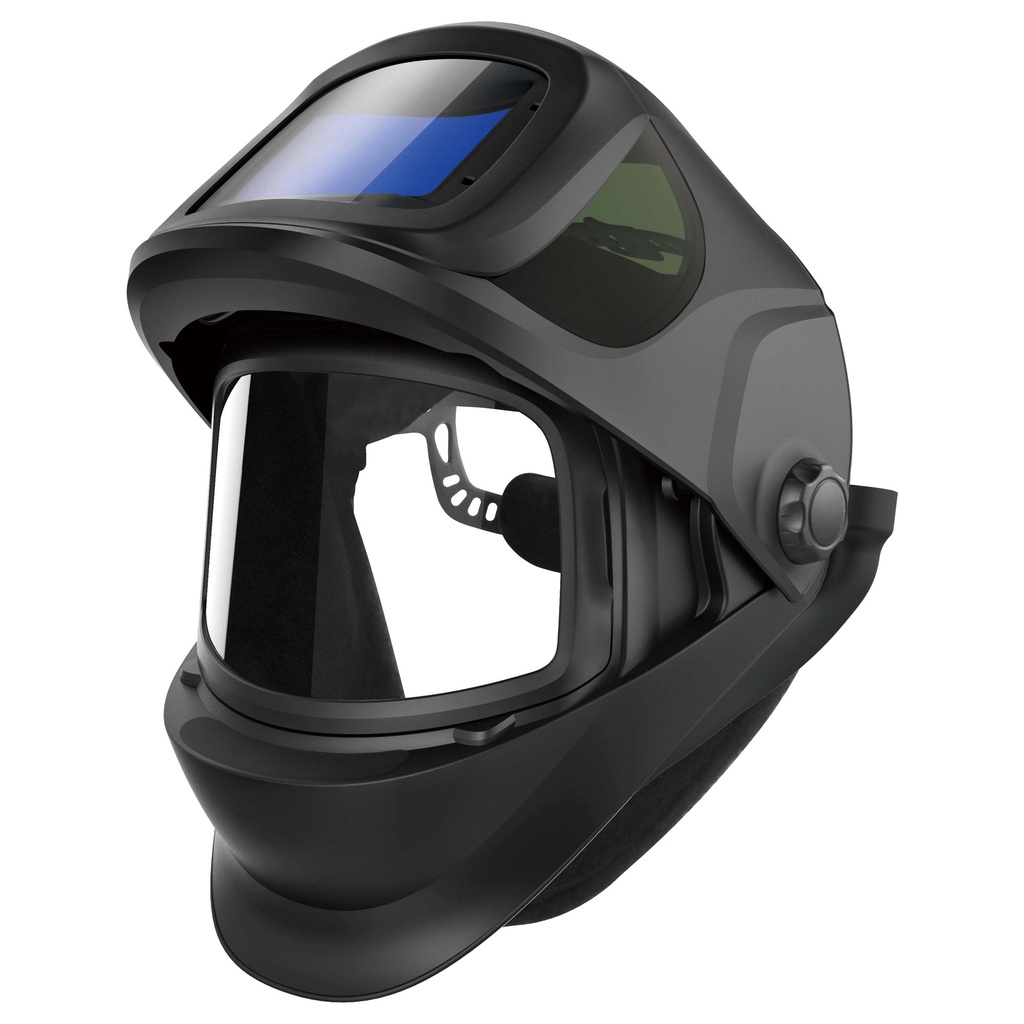

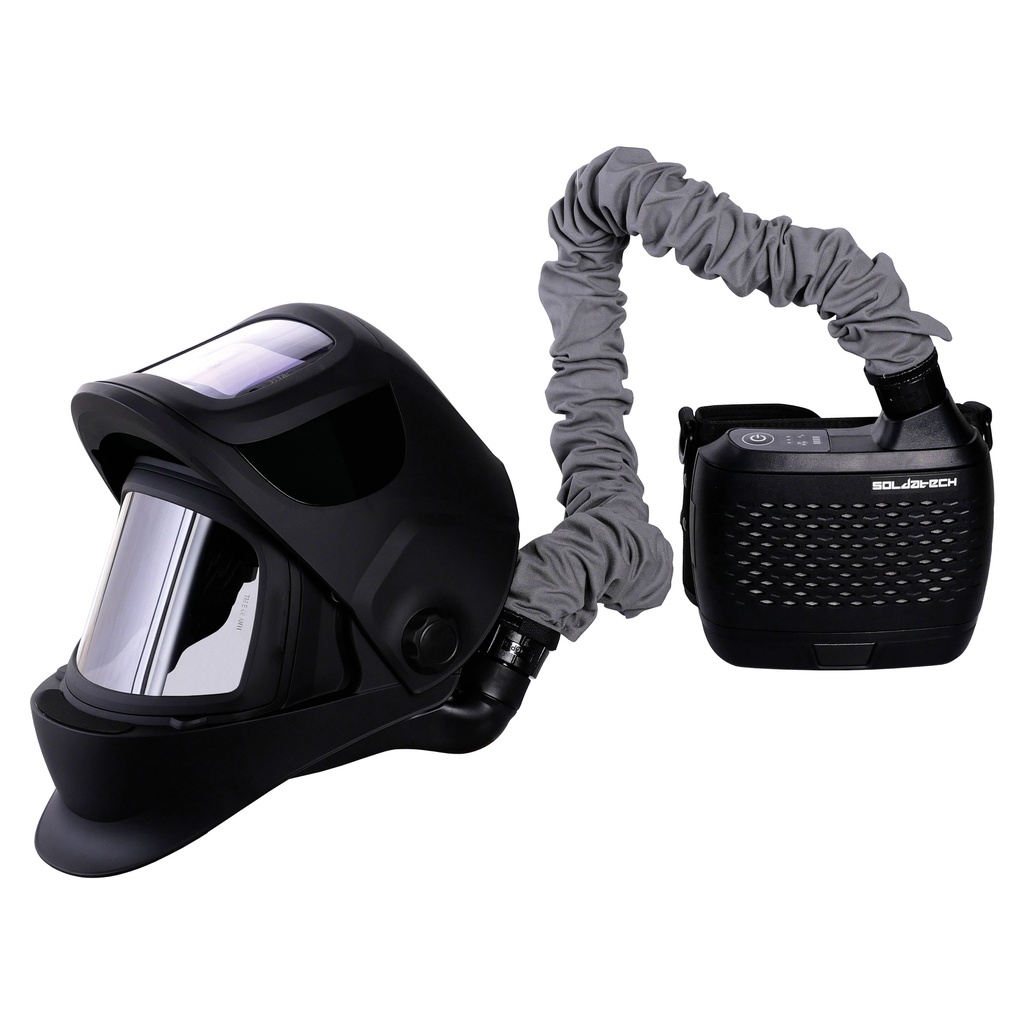

EWH5F

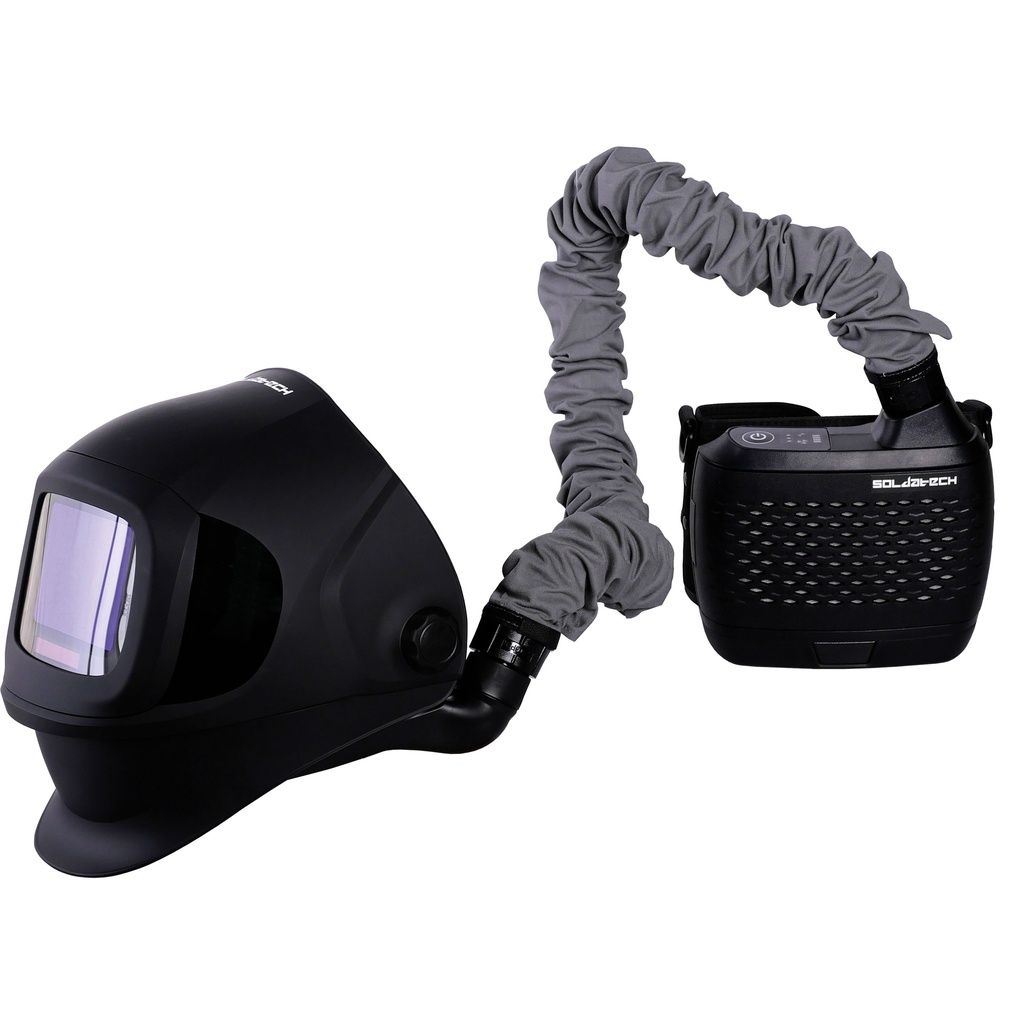

The EWH5F welding helmet  from Soldatech offers advanced protection and comfort, featuring an integrated air blower unit for highly effective respiratory protection. This system filters hazardous welding fumes and gases, delivering a continuous flow of clean, filtered air directly to the breathing zone. With a large 107x75mm viewing area, the helmet provides excellent visibility, while the side lenses enhance peripheral awareness and can be covered when needed. The auto-darkening filter (ADF), equipped with four independent arc sensors, ensures fast and reliable activation, even at low amperages from 2A (AC/DC). The digital display allows precise filter adjustments, and the DIN 4 light state ensures brightness before welding. The adjustable grind mode (DIN 5-8) also makes it suitable for plasma cutting. A solar cell with two CR2450 batteries ensures reliable operation. An external push button allows quick switching between welding and grind mode, even with gloves. The five-strap headgear distributes weight evenly for a secure and comfortable fit. The high-impact nylon shell provides durability while remaining lightweight. The respirator features intelligent control that adjusts airflow automatically, a high-performance motor for effective and quiet operation, and a triple-alarm system for enhanced safety.

Key features:

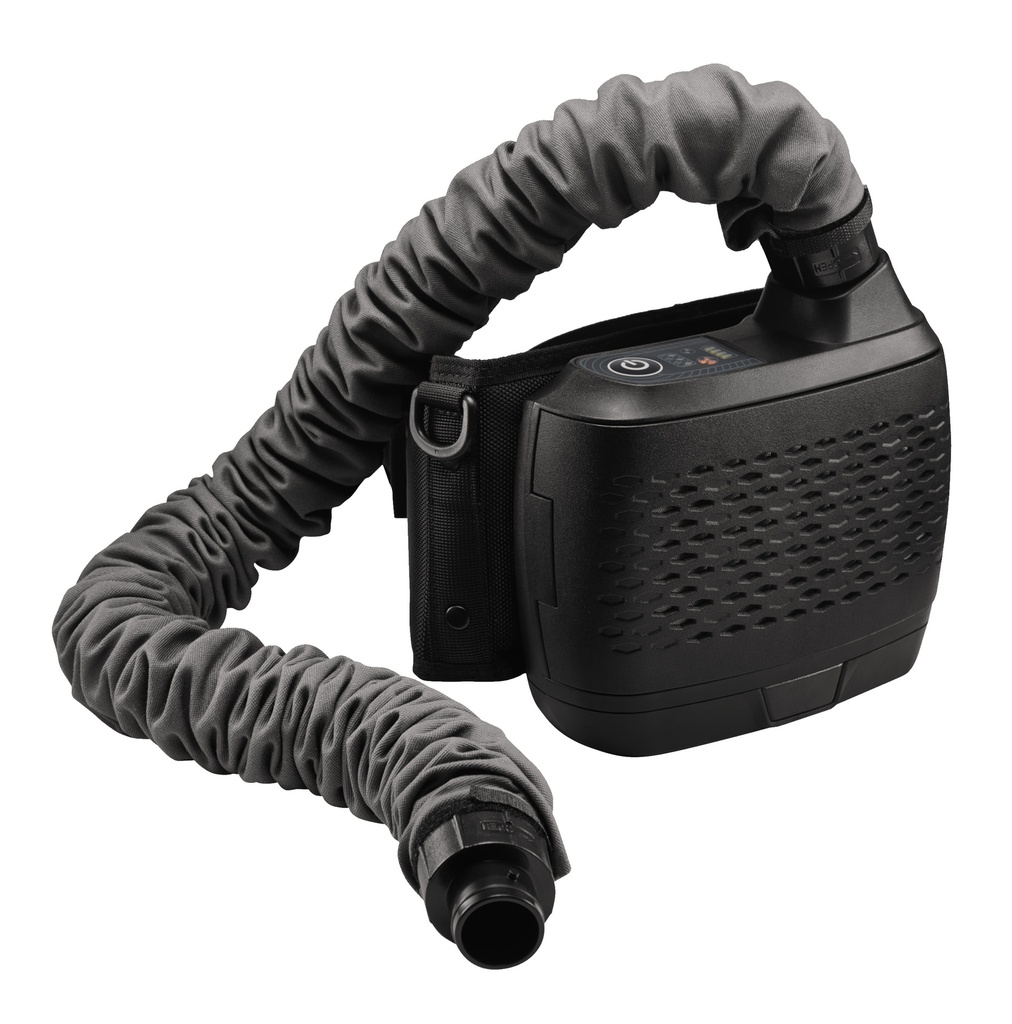

Integrated air blower unit provides a continuous flow of clean, filtered air.

4 independent arc sensors deliver fast and reliable auto-darkening activation.

TIG detection from 2A (AC/DC) – excellent response for low-amperage welding.

Clear lens technology – ultimate sight and brightness.

Side lenses enhanced peripheral vision, with optional covers.

Digital display – easy and precise filter adjustments.

Fast switching speed (1/25,000 sec) – instant reaction for optimal eye protection.

External push button – quick switching between welding and grinding mode.

Certified safety standards – CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1 compliant.

Specifications:

  • Specifications 1
    Helmet

  • Optical class
    1/1/1/1

  • Viewing area
    107 x 75 mm

  • Cartridge size
    156 x 123 x33 mm

  • Arc sensor
    4

  • Light state
    DIN 4

  • Cutting shade
    5 ~ 8

  • Dark state
    variable shade 5 ~ 8 / 9 ~ 13

  • Shade control
    internal

  • Shade control
    digital display control

  • Power on/off
    manual on/off; auto-off

  • Sensitivity control
    digital display control

  • Power supply
    solar cell, 2× CR2450 lithium battery replaceable

  • Low battery indicator
    Yes, Digital display

  • Switching time (light to dark)
    1/25000 sec.

  • Delay time (dark to light)
    0.1 - 1.0s

  • Low amperage TIG rated
    ≥ 2 amps (DC); ≥ 2 amps (AC)

  • Grinding
    Yes

  • Grind state
    DIN 4

  • Operating temperature
    -5°C ~ 55°C

  • Storage temperature
    -10°C ~ +55°C

  • Helmet material
    High impact resistance nylon

  • MMA welding applications
    SMAW

  • TIG welding applications
    GTAW-DC / GTAW-AC / GTAW-P DC / GTAW-P AC

  • MIG welding application
    GMAW (MIG/MAG) / GMAW-P

  • Cutting welding application
    PAC / CAC-A / OC

  • Other welding application
    PAW / OFW

  • Specifications 2
    Respirator

  • Filter efficiency
    99,997%

  • Operating temperature
    -5°C ~ 55°C

  • Storage temperature
    -10°C to 55°C

  • Airflow rate
    min. design 165+lpm (5.8+cfm); Low speed 170+lpm (6+cfm); High speed 210+lpm (7.4+cfm)

  • Charging time
    1 hour

  • Battery duration
    9h (170+lpm); 5-6 h (210+lpm)

  • Battery type
    rechargeable

  • Battery capacity test
    -

  • Battery technology
    Lithium-ion

  • Charge cycles
    ≥500

  • Protection (UV/IR)
    up to shade DIN16 at all times

  • Dimensions
    450.0mm x320.0mm x300.0mm

  • Weight
    2.5Kg

Strongpoints:

  • 4 independent arc sensors
  • Flip-up design
  • Clear lens technology for ultimate visibility and brightness
  • Side lens
  • Incl. air filter system

Downloads:
