MOBILE WELDING FUME EXTRACTORS

LDA01

LDA02

LDA02P

HIGH QUALITY EXTRACTION ARM
The mobile welding fume extractors from Soldatech are a reliable solution for maintaining a safe and healthy working environment, designed to effectively capture and remove welding fumes.

This advanced filtration system ensures that even the smallest particles are effectively captured, providing you with peace of mind knowing that the air you breathe is free from harmful contaminants. Made in Europe, the Welding Fume Extractor upholds the highest standards of quality and performance. Its durable construction and reliable operation make it a valuable asset for any welding workshop or industrial setting.

ELECTRODE

Al de Soldatech by HG elektrode lasapparaten beschikken standaard over de volgende functies:



LDA01

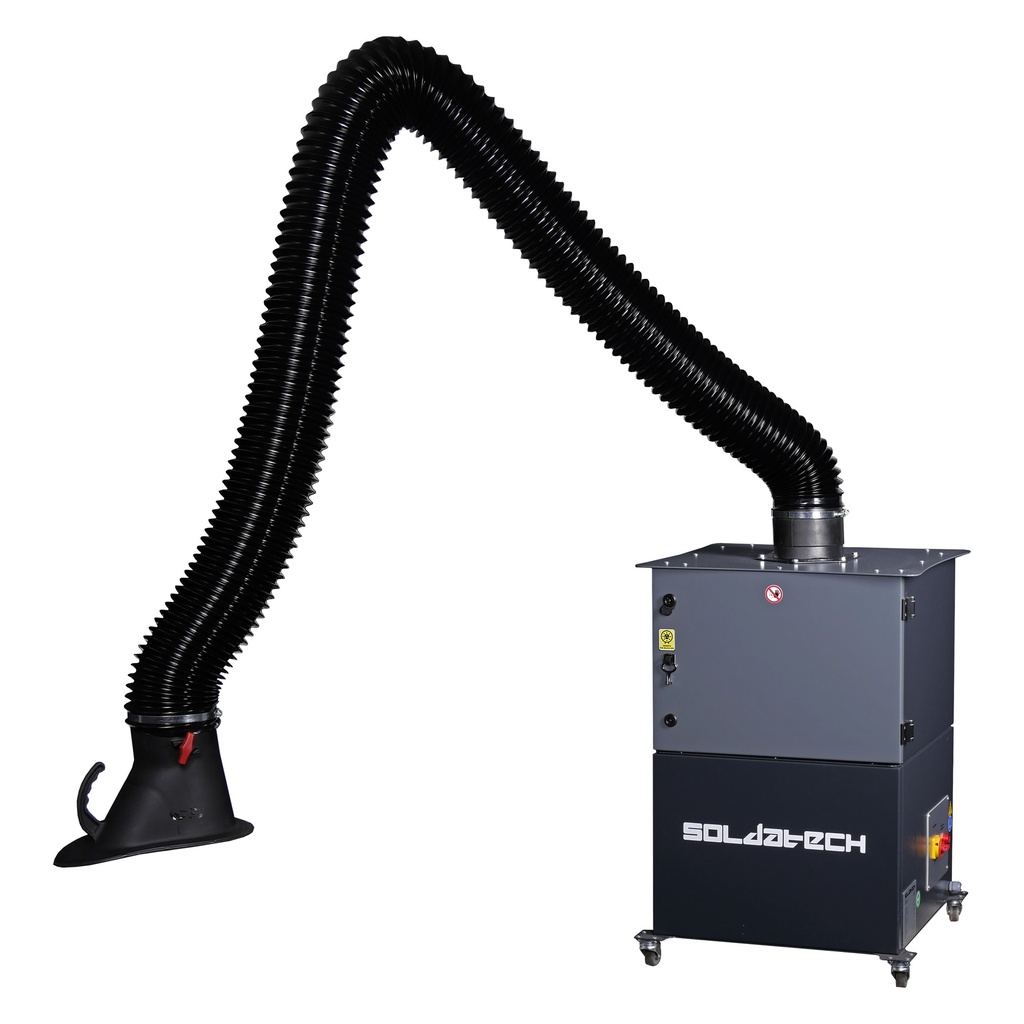

This mobile welding fume extractor from Soldatech is a reliable solution for maintaining a safe and healthy working environment. With its efficient 0.75 kW motor capable of handling 1950 m³/h of air flow,  this extractor is designed to effectively capture and remove welding fumes.

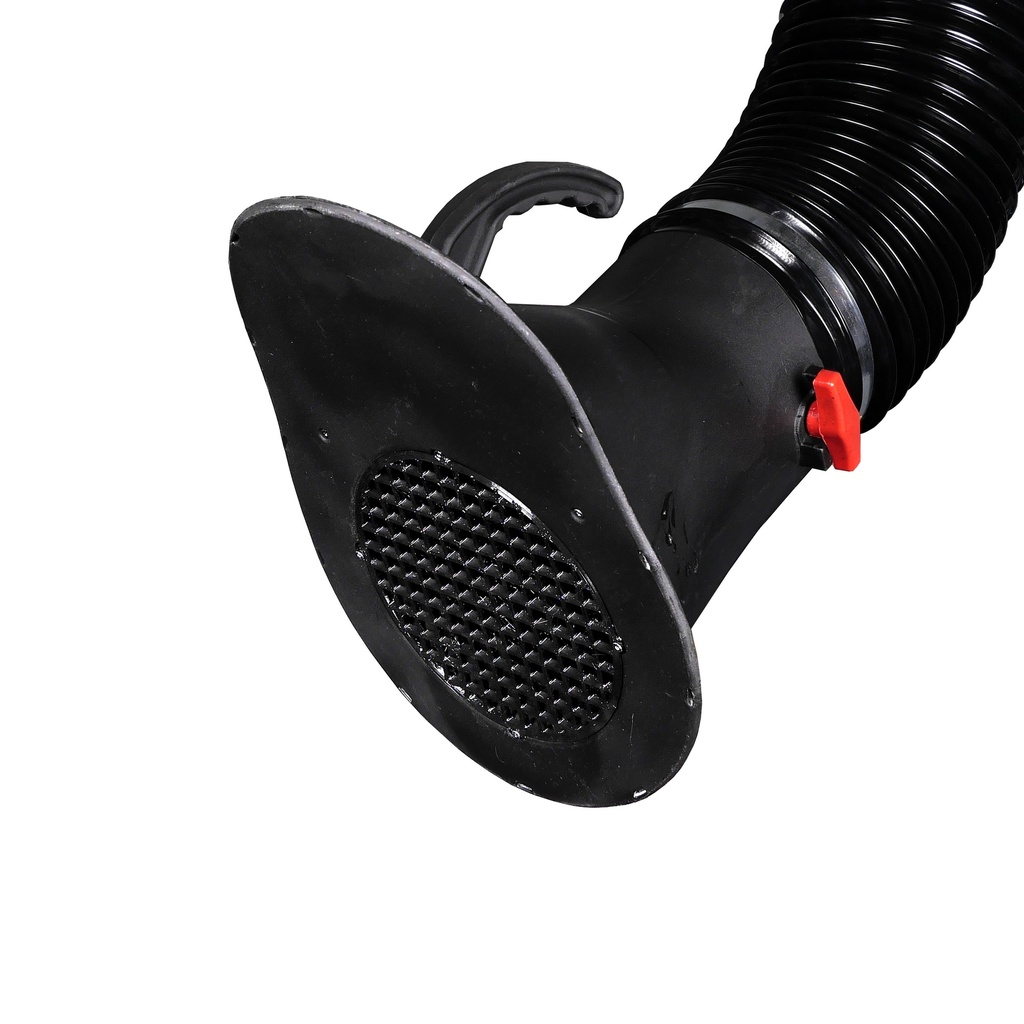

The inclusion of a high-quality 3mtr extraction arm ensures precise positioning for targeted fume extraction, while the disposable filter with high dust collection capacity guarantees clean and breathable air in your workspace.

What sets this fume extractor apart is its H13 class HEPA filter, which is compliant with IFA W3 requirements. This advanced filtration system ensures that even the smallest particles are effectively captured, providing you with peace of mind knowing that the air you breathe is free from harmful contaminants.

Made in Europe, the Welding Fume Extractor upholds the highest standards of quality and performance. Its durable construction and reliable operation make it a valuable asset for any welding workshop or industrial setting.

Thanks to the interchangeable filter it's possible to purchase additional active carbon filters to remove more harmful fumes as Chrome 6 which make this fume extractor suitable for aluminium and stainless steel welding.

Specifications:

  • Motor power
    0.75 kW

  • Cleaning system
    Disposable filter

  • Extraction capacity
    1000 m³/h

  • Fan capacity
    1950 m³/h

  • Hose diameter
    160 mm

  • Filter material
    H13 HEPA

  • Power supply
    230V / 50Hz

  • Arm length
    3 meters

  • Noise level
    75 dB

  • Filter stage
    2

  • Filtration area
    Main filter 13 m²

  • Filter efficiency
    H13 Class (EN 1822)

  • Dimensions
    700.0mm x600.0mm x1097.0mm

  • Weight
    110.0Kg

Strongpoints:

  • High quality 3mtr extraction arm
  • Disposable filter with high dust collection capacity
  • H13 class HEPA filter Compliant with IFA W3 requirements
  • Made in Europe
  • Filter full indicator

LDA02

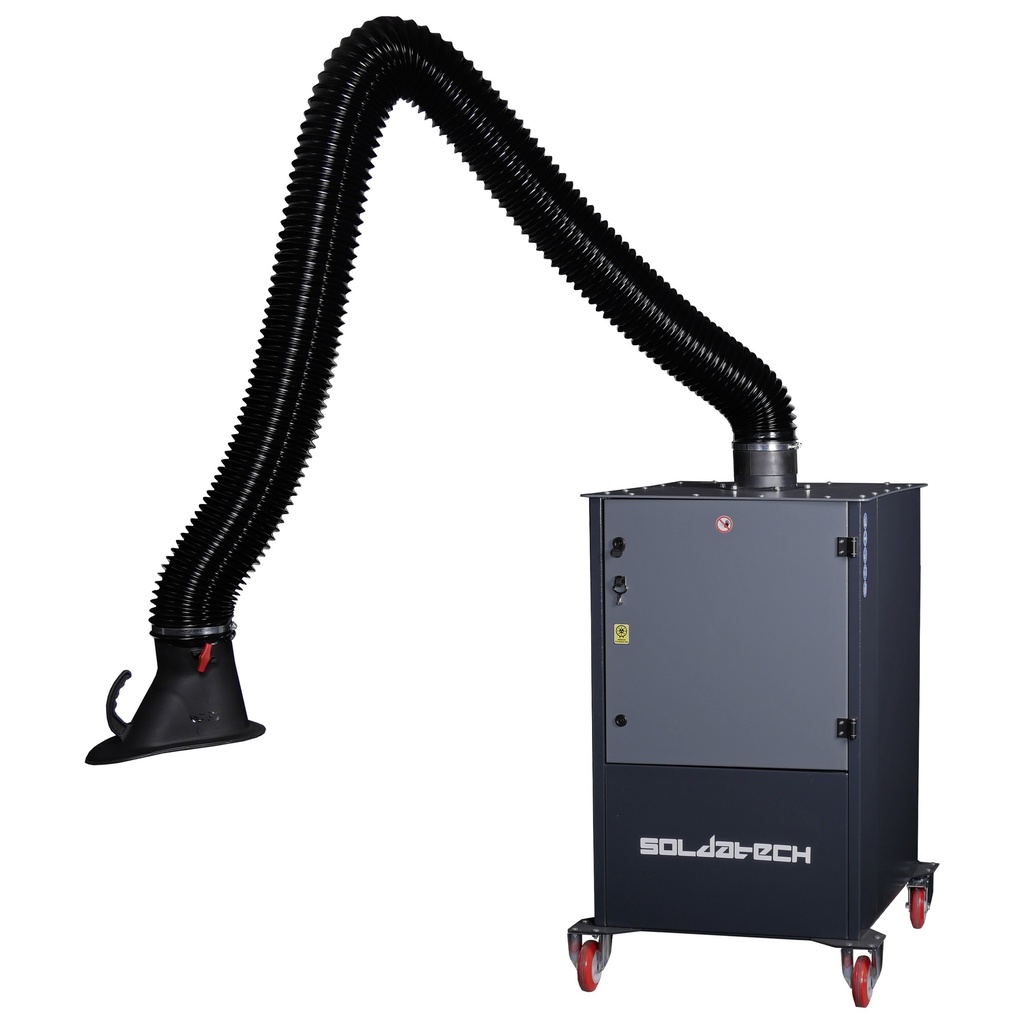

This mobile welding fume extractor from Soldatech is a reliable solution for maintaining a safe and healthy working environment. With its efficient 0.75 kW motor capable of handling 2200 m³/h of air flow,  this extractor is designed to effectively capture and remove welding fumes.

The inclusion of a high-quality 3mtr extraction arm ensures precise positioning for targeted fume extraction, while the cleanable filter with high dust collection capacity guarantees clean and breathable air in your workspace.

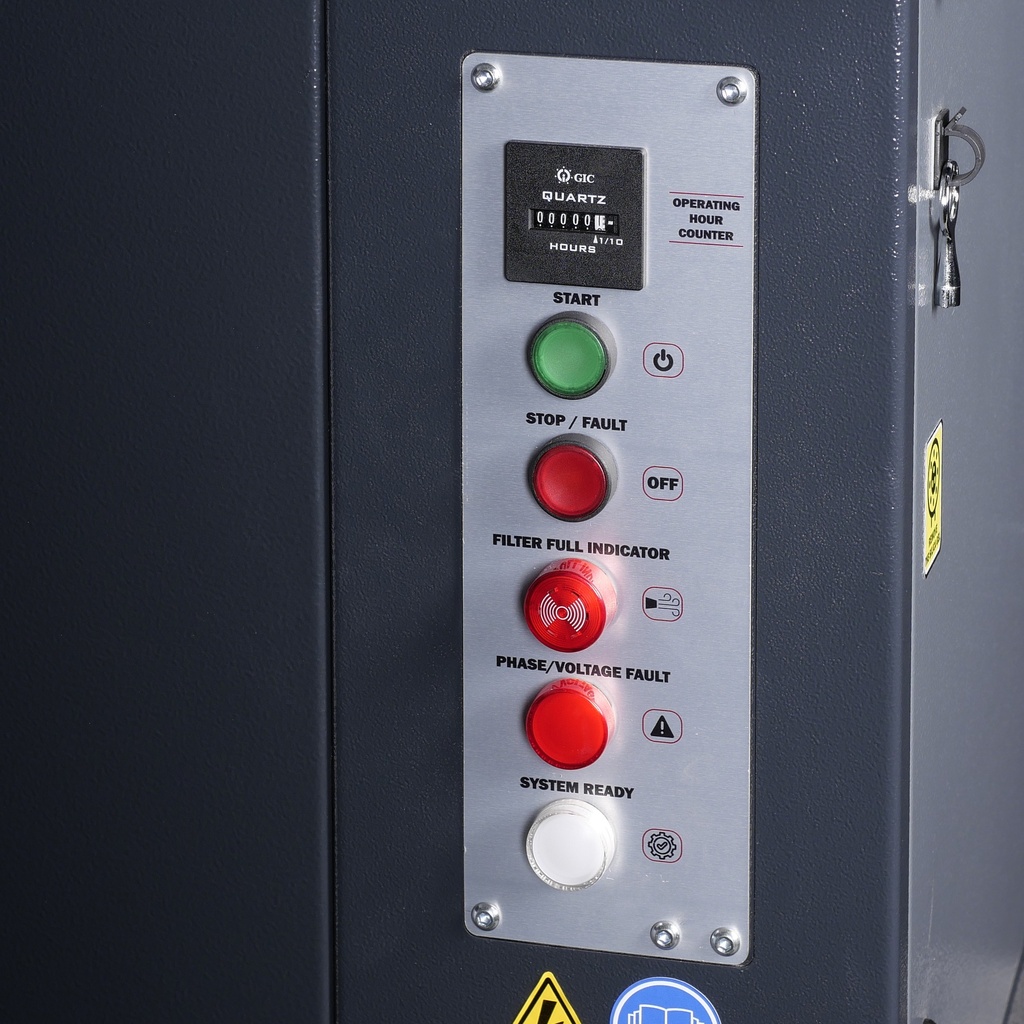

Equipped with a convenient filter clog alarm to alert you when maintenance is required, ensuring continuous efficiency.

What sets this fume extractor apart is its H13 class HEPA filter, which is compliant with IFA W3 requirements. This advanced filtration system ensures that even the smallest particles are effectively captured, providing you with peace of mind knowing that the air you breathe is free from harmful contaminants.

Made in Europe, the Welding Fume Extractor upholds the highest standards of quality and performance. Its durable construction and reliable operation make it a valuable asset for any welding workshop or industrial setting.

Specifications:

  • Motor power
    0.75 kW

  • Cleaning system
    Manual

  • Filter quantity
    1

  • Extraction capacity
    1200 m³/h

  • Hose diameter
    160 mm

  • Filter material
    polyMIGHT PTFE 65

  • Power supply
    380 V / 50Hz

  • Arm length
    3 meters

  • Noise level
    72 dB

  • Filter stage
    1

  • Filter technology
    Cleanable cartridge filter

  • Filtration area
    10 m²

  • Filter efficiency
    H13 Class (Compliant with IFA W3 requirements)

  • Fan capacity
    1950 m³/h

  • Dimensions
    805.0mm x660.0mm x1210.0mm

  • Weight
    170.0Kg

Strongpoints:

  • High quality 3mtr extraction arm
  • polyMIGHT PTFE 65 cleanable cartridge filter
  • Filter clog alarm
  • H13 class cartridge filter сompliant with IFA W3 requirements
  • Made in Europe

LDA02P

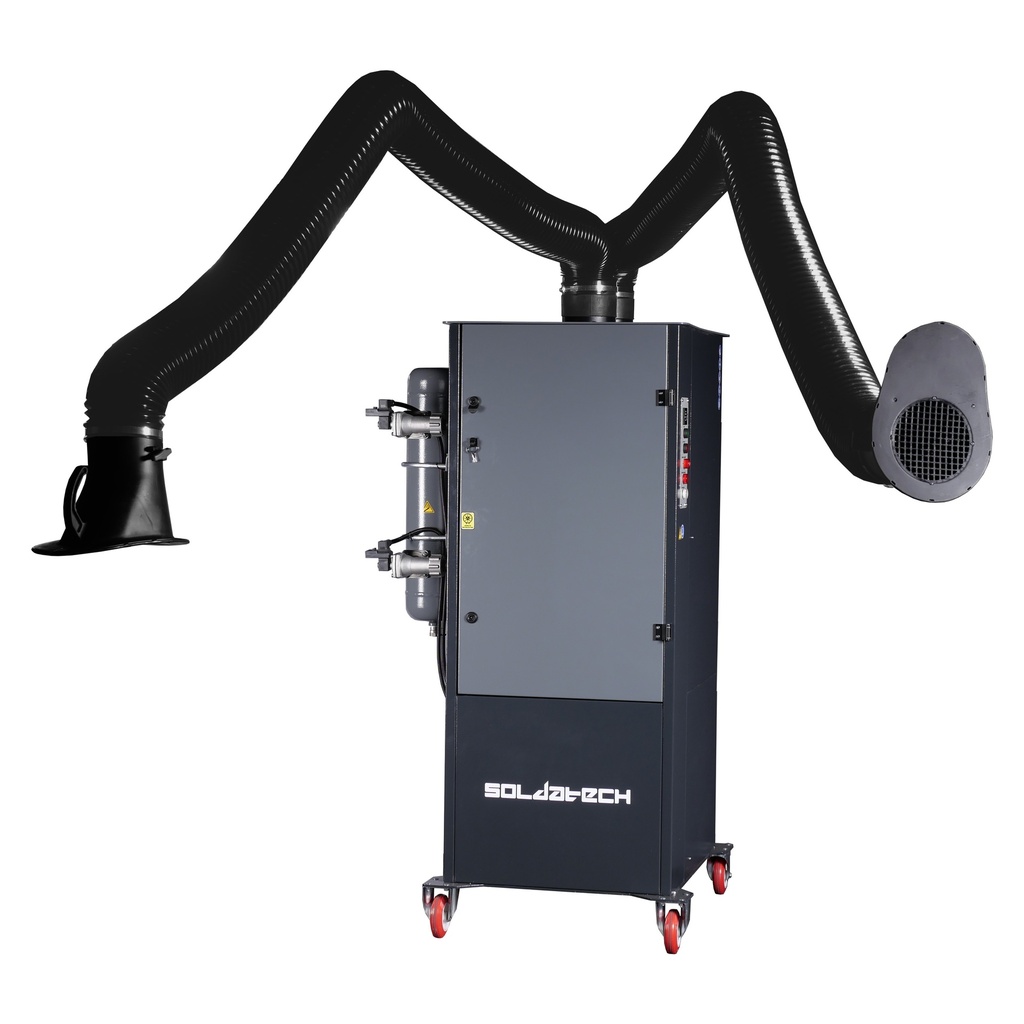

This mobile welding fume extractor with automatic jet-pulse cleaning system with 2 extraction arms from Soldatech is a reliable solution for maintaining a safe and healthy working environment. With its efficient 1.1 kW motor capable of handling 2200 m³/h of air flow,  this extractor is designed to effectively capture and remove welding fumes.
What sets this welding fume extractor apart from other mobile devices is its ability to operate continuously, making it ideal for long-term use.

The inclusion of two high-quality 3mtr extraction arm ensures precise positioning for targeted fume extraction, while the disposable filter with high dust collection capacity guarantees clean and breathable air in your workspace.

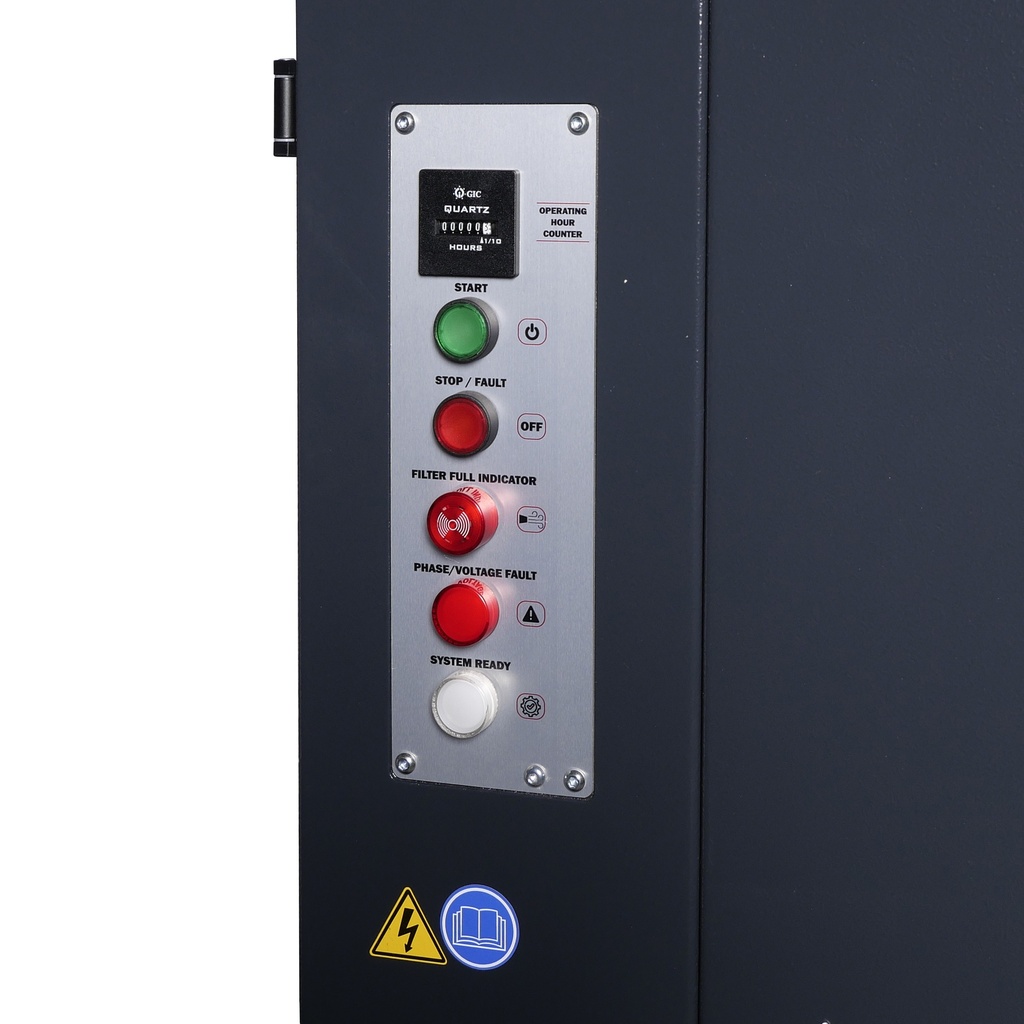

This model is equipped with cleanable cartridge H13 class HEPA filter, which is compliant with IFA W3 requirements, 360-degree rotating extraction arm, radial fan with high efficiency and suction power, fan rotation direction warning light, filter occupancy sensor, automatic Jet-Pulse cleaning system, and filter operating hour counter.

Thanks to their lower ACR (filtration speed), mobile welding extractor require less frequent maintenance than their counterparts.

This advanced filtration system ensures that even the smallest particles are effectively captured, providing you with peace of mind knowing that the air you breathe is free from harmful contaminants.

Made in Europe, the Welding Fume Extractor upholds the highest standards of quality and performance. Its durable construction and reliable operation make it a valuable asset for any welding workshop or industrial setting.

Specifications:

  • Motor power
    1.1 kW - 2875 rpm

  • Cleaning system
    Jet-Pulse

  • Filter quantity
    2

  • Extraction capacity
    2 x 1.100 m³/h

  • Hose diameter
    160 mm

  • Filter material
    polyMIGHT PTFE 65

  • Power supply
    400 V / 50 Hz

  • Arm length
    3 meters

  • Noise level
    73 dB

  • Filter stage
    1

  • Filter technology
    Cleanable cartridge filter

  • Filtration area
    20 m²

  • Filter efficiency
    H13 Class (Compliant with IFA W3 requirements)

  • Fan capacity
    2600 m³/h

  • Dimensions
    890.0mm x810.0mm x1760.0mm

  • Weight
    240.0Kg

Strongpoints:

  • High quality 3mtr double extraction arm
  • Dual polyMIGHT PTFE 65  cleanable HEPA  filter
  • Filter clog alarm
  • Automatic filter cleaning system
  • Adjustable cleaning cycle timing
  • Made in Europe
