ELECTRODE WELDING MACHINES

COMPACT & LICHT IN GEWICHT

Get started with almost all coated electrodes! Thanks to the latest inverter technology, these electrode welders are lightweight and compact. The lightest inverter welding devices weigh less than 5kg, are small in size and have a comparable output capacity to conventional welding equipment of 50kg.
These electrode welders have an exceptionally high no load voltage and are equipped with thermal protection, anti-stick, hot start and VRD. All devices are infinitely adjustable and easy to operate by means of a digital display.
The shock-resistant ABS case guarantees a virtually indestructible complete package.
In conclusion, these devices are very suitable for mobile welding applications and are easy to use for both the professional and the novice welder.

ELECTRODE

All Soldatech by HG electrode welding machines are equipped with the following functions:

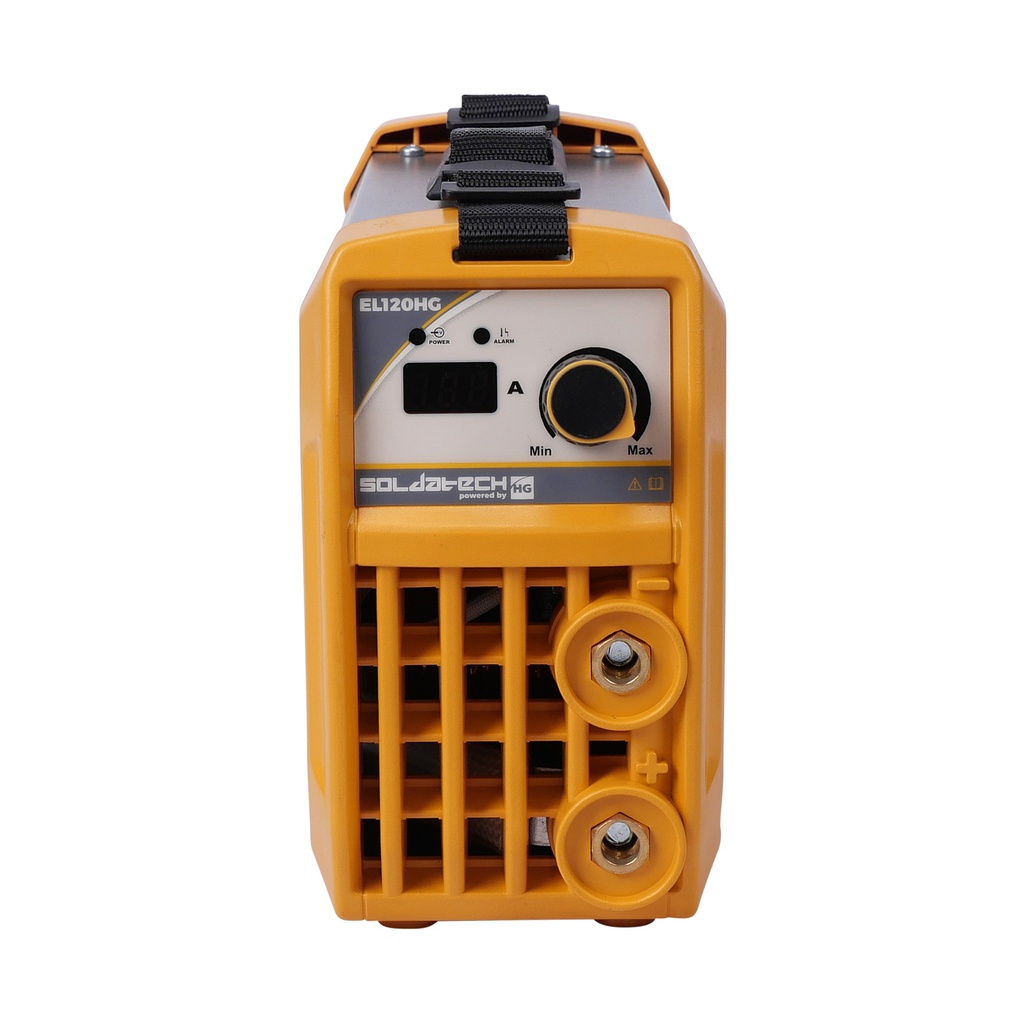

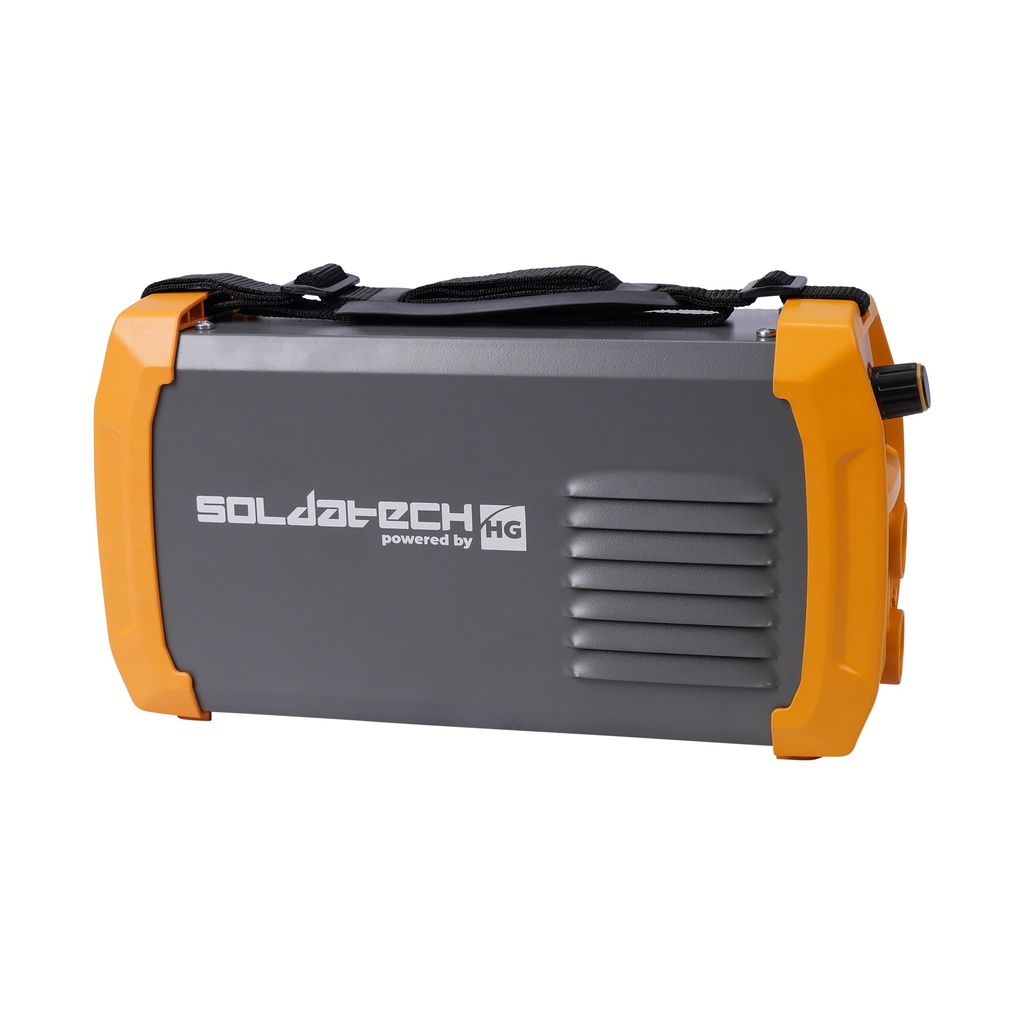

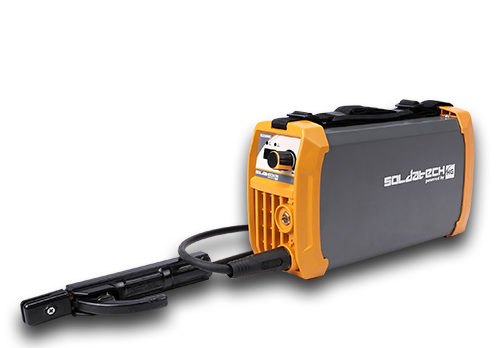

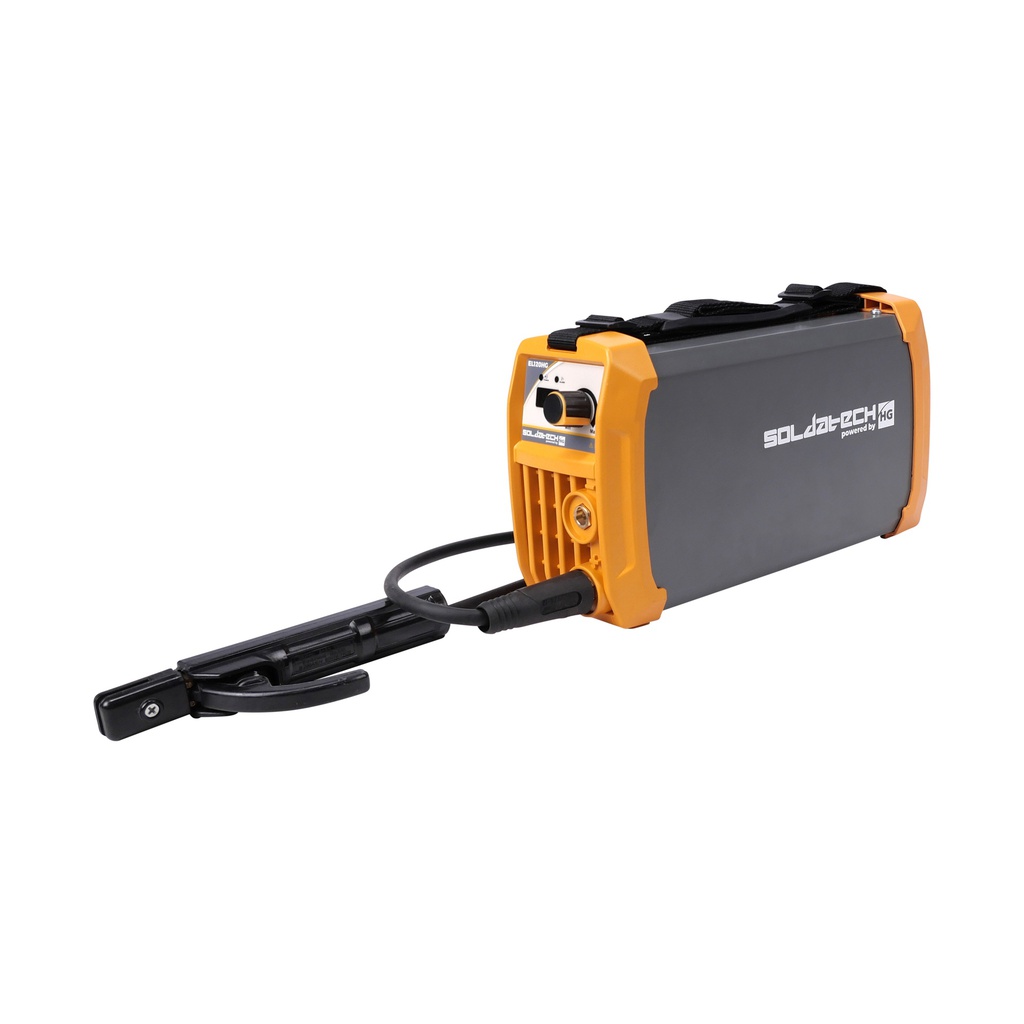

EL120HG

Electrode welding inverter / welder / welding machine / welding device

This Soldatechpowered by HG electrode welding machine is very suitable for welding at any location because of its compact, light, manageable and powerful design.

The easily adjustable welding current ensures that the EL120HG can be easily used for welding jobs with different materials and thicknesses.

The hot-start / anti-stick function quickly increases the welding current so that the electrode does not stick to the workpiece.

The modern IGBT inverter technology not only ensures that the EL120HG delivers long-lasting performance with more power, but it also makes the device lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Ideal for welding carbon steel, low alloy steel and stainless steel. Welds perfectly with rutile (E 6013) and basic (E 7018).

Each EL120HG comes standard with:

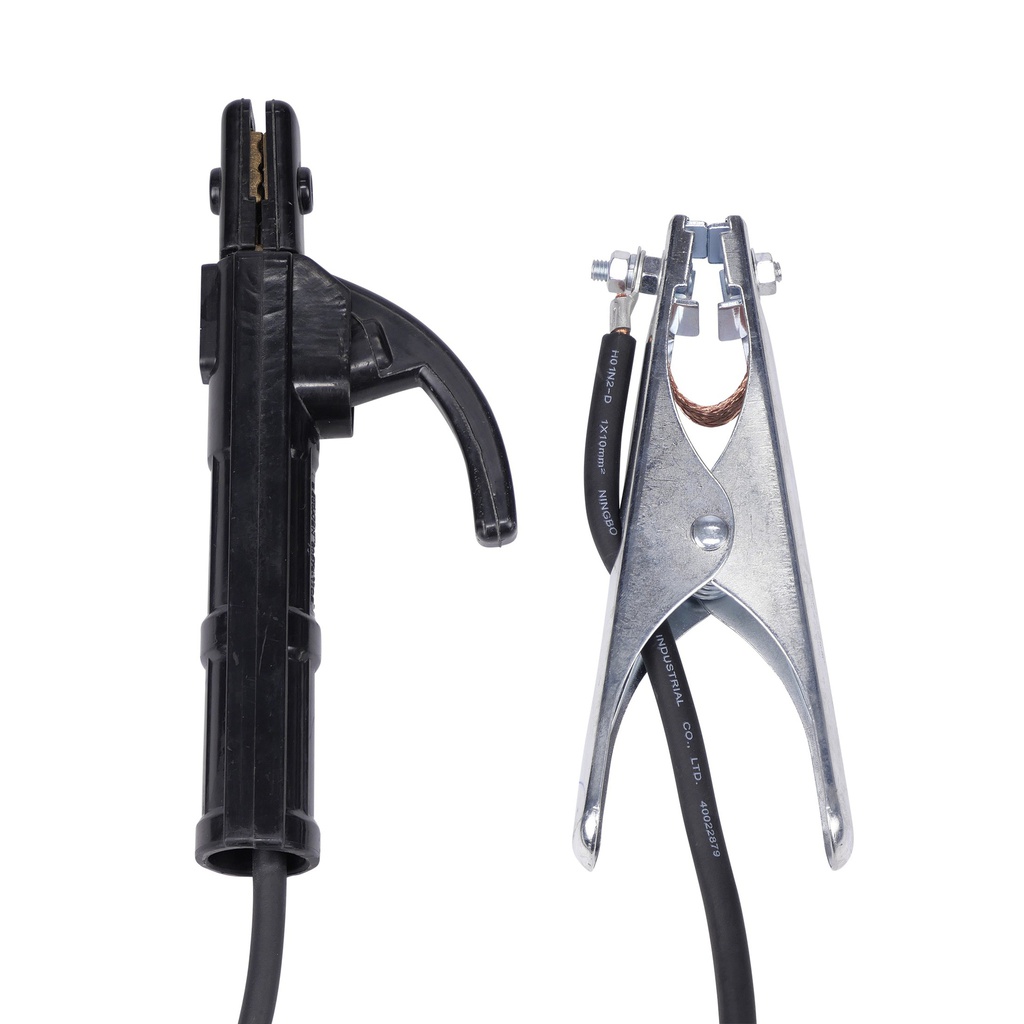

  • Electrode torch with 1.8m 10mm² cable

  • Welding ground clamp with 1.2m 10mm² cable

  • Neoprene power with 2m 3x1.5mm² cable

  • European dinse couplers 9mm

  • Shoulder strap

Specifications:

  • Frequency
    50/60 Hz

  • Voltage
    230V - 1 Phase

  • No load Voltage
    68V

  • Input power
    5.06kVA

  • Circuit breaker
    16A B-char

  • Duty cycle @20C
    30% - 120A

  • Welding current range
    15 - 120A

  • Duty cycle @40C
    15% - 120A

  • Welding electrodes
    1.6 - 2.5m

  • Protection class
    IP21S

  • Dimensions
    330.0mm x102.0mm x176.0mm

  • Weight
    3.5Kg

Strongpoints:

  • Infinitely adjustable

  • Very compact and lightweight

  • Digital display

  • ABS shock resistant housing

  • 5 year warranty


Downloads:

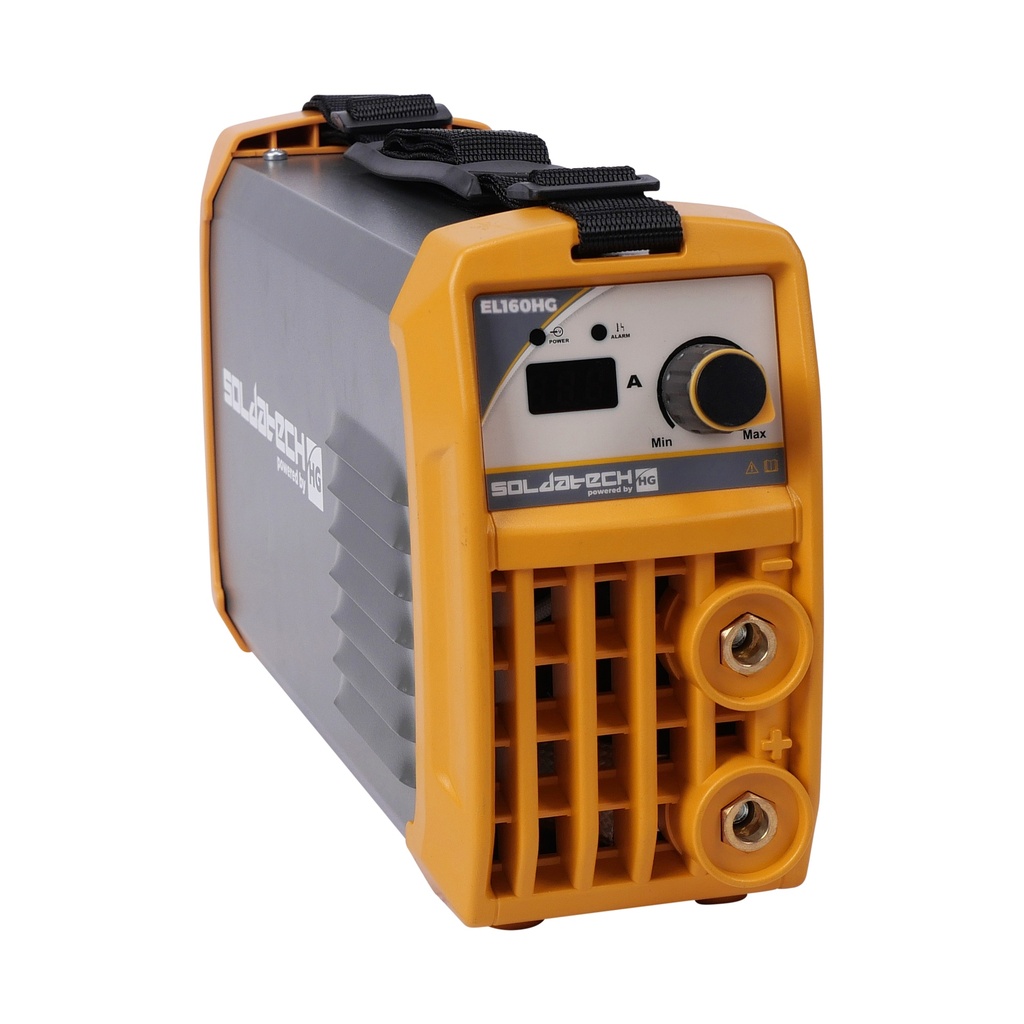

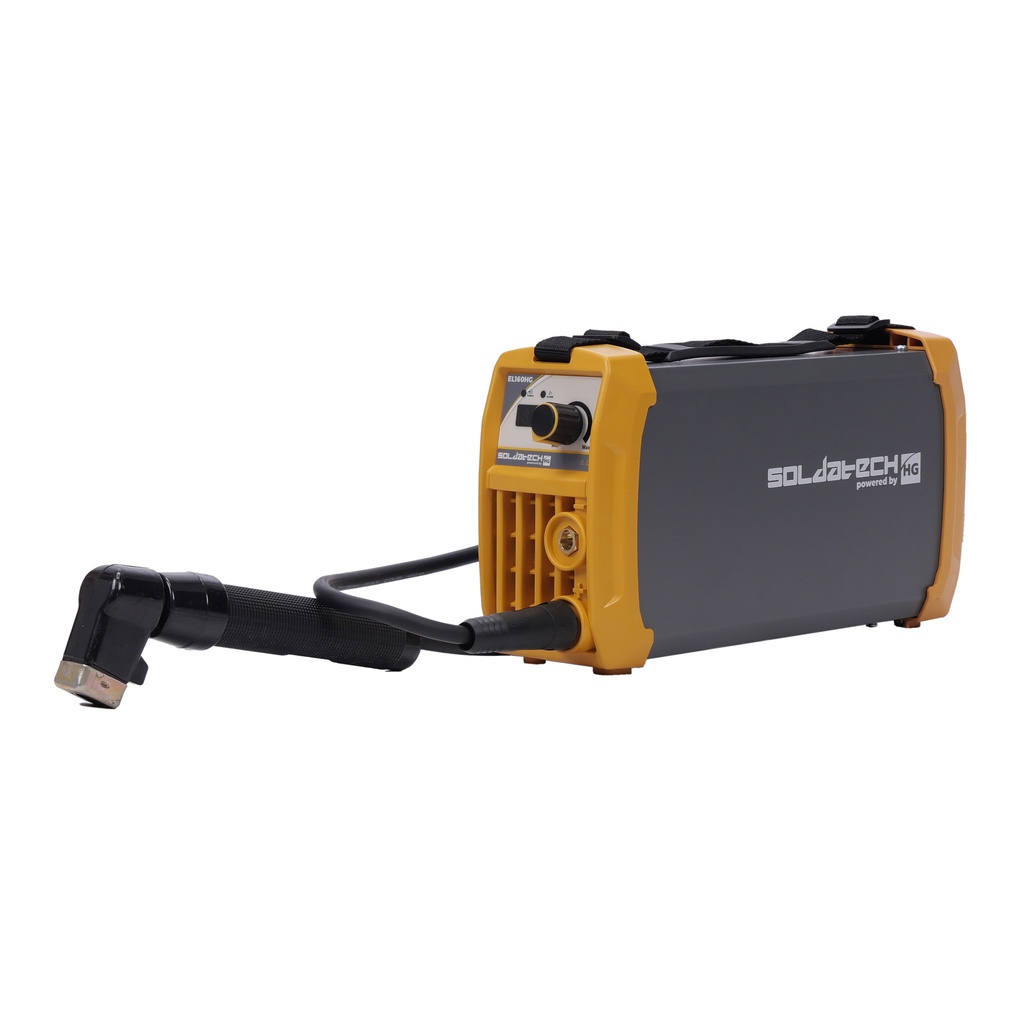

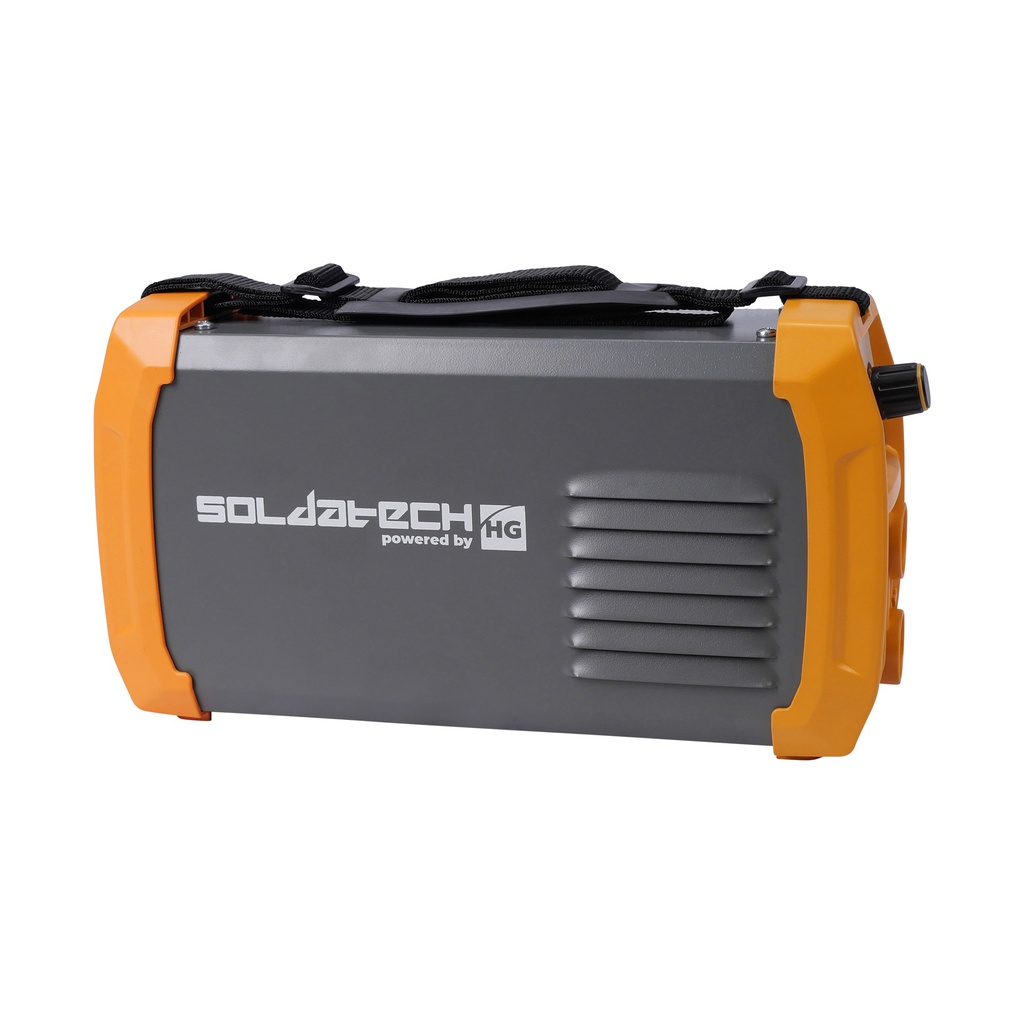

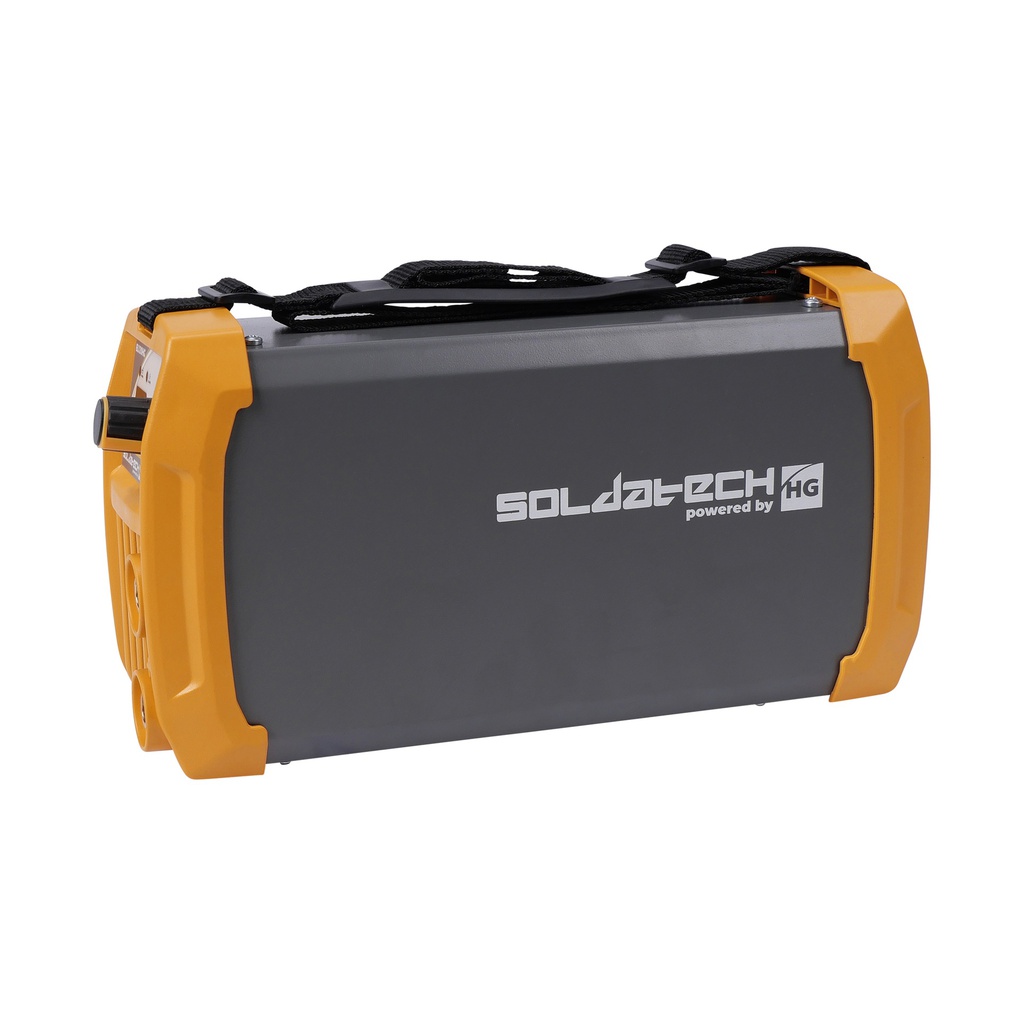

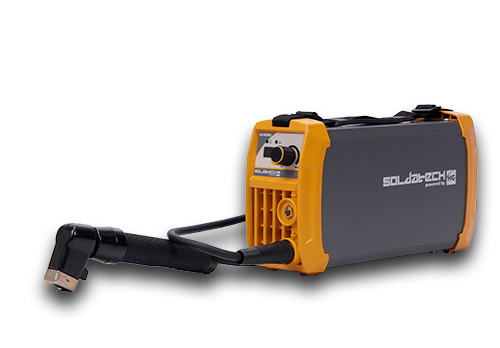

EL160HG

Electrode welding inverter / welder / welding machine / welding device

This Soldatechpowered by HG electrode welding machine is very suitable for welding at any location because of its compact, light, manageable and powerful design.

The easily adjustable welding current ensures that the EL160HG can be used quickly for welding jobs with different materials and thicknesses.

The hot-start / anti-stick function quickly increases the welding current so that the electrode does not stick to the workpiece.

The modern IGBT inverter technology not only ensures that the EL160HG delivers long-lasting performance with more power, but it also makes the device lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Ideal for welding carbon steel, low alloy steel and stainless steel. Welds perfectly with rutile (E 6013) and basic (E 7018).

Every EL160HG comes standard with:

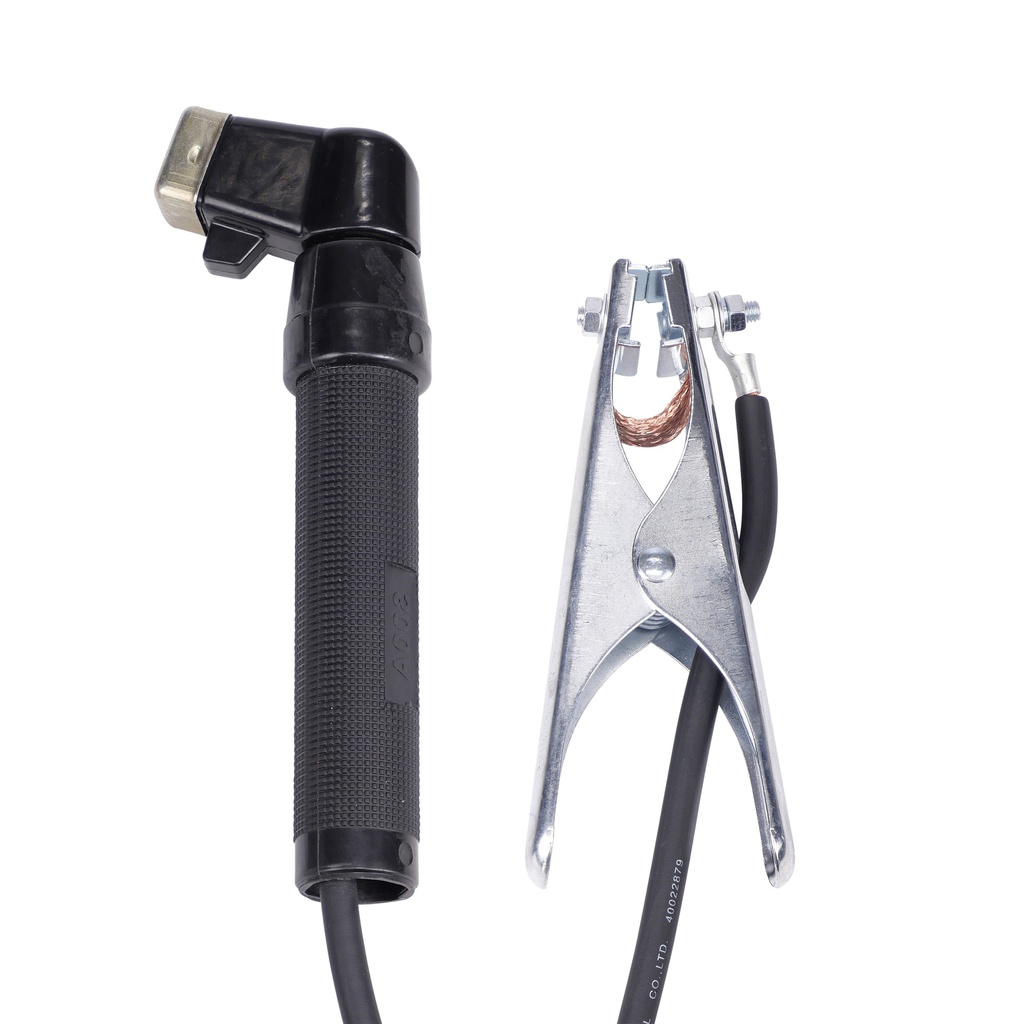

  • Twistlock electrode torch with 3m 16mm² cable

  • Welding ground clamp with 2m 16mm² cable

  • Neoprene power with 2m 3x2.5mm² cable

  • European dinse couplers 9mm

  • Sturdy storage case

  • Shoulder strap


Specifications:

  • Frequency
    50/60 Hz

  • Voltage
    230V - 1 Phase

  • No load Voltage
    68V

  • Input power
    6.9kVA

  • Circuit breaker
    16A B-char

  • Duty cycle @20C
    40% - 160A

  • Welding current range
    20 - 160A

  • Duty cycle @40C
    20% - 160A

  • Welding electrodes
    1.6 - 3.2mm

  • Protection class
    IP21S

  • Dimensions
    330.0mm x102.0mm x176.0mm

  • Weight
    3.5Kg

Strongpoints:

  • High quality twistlock electrode holder

  • Infinitely adjustable

  • Sturdy storage case

  • ABS shock resistant housing

  • 5 years warranty


Downloads:

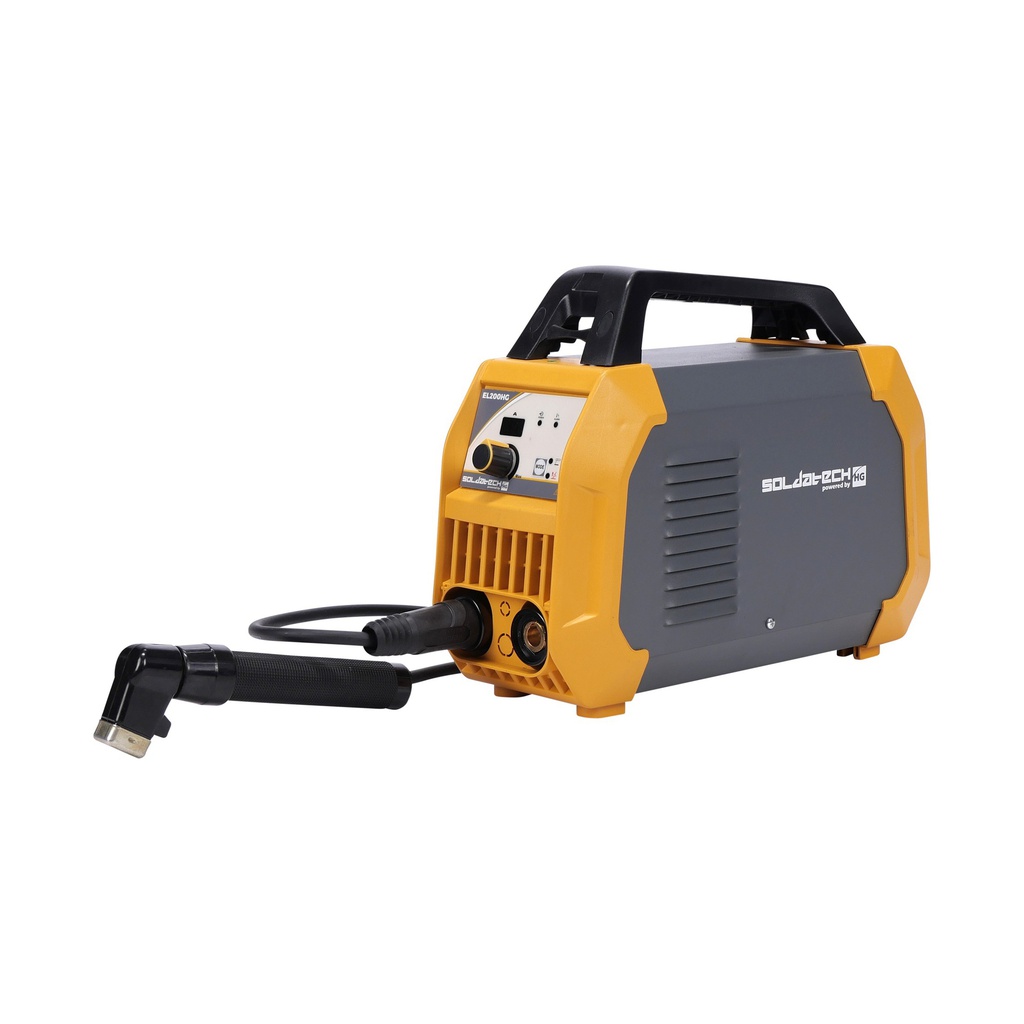

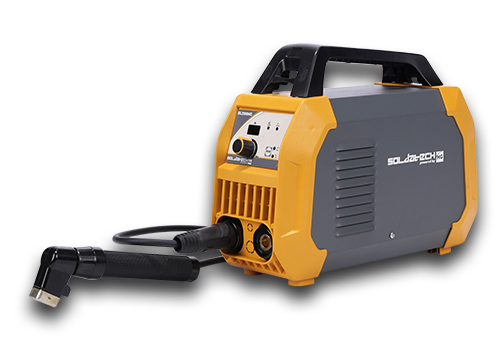

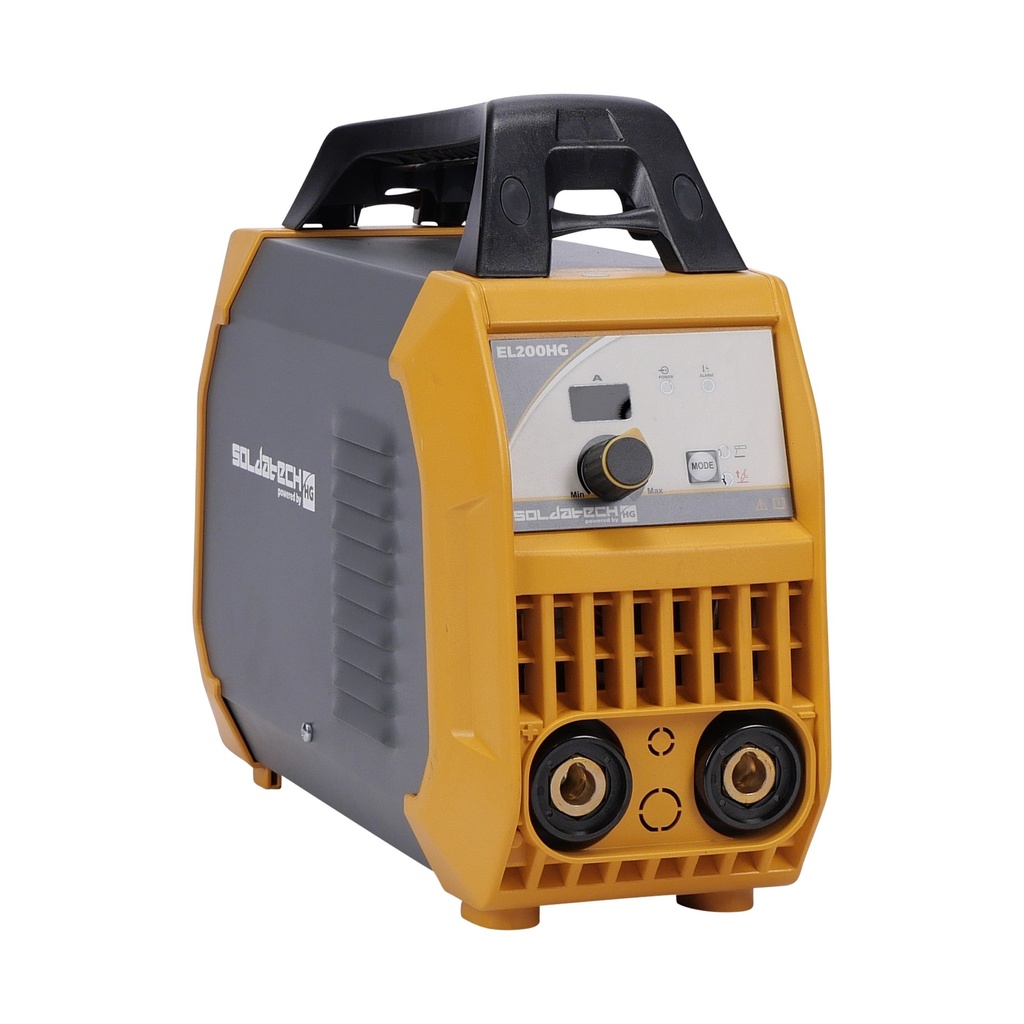

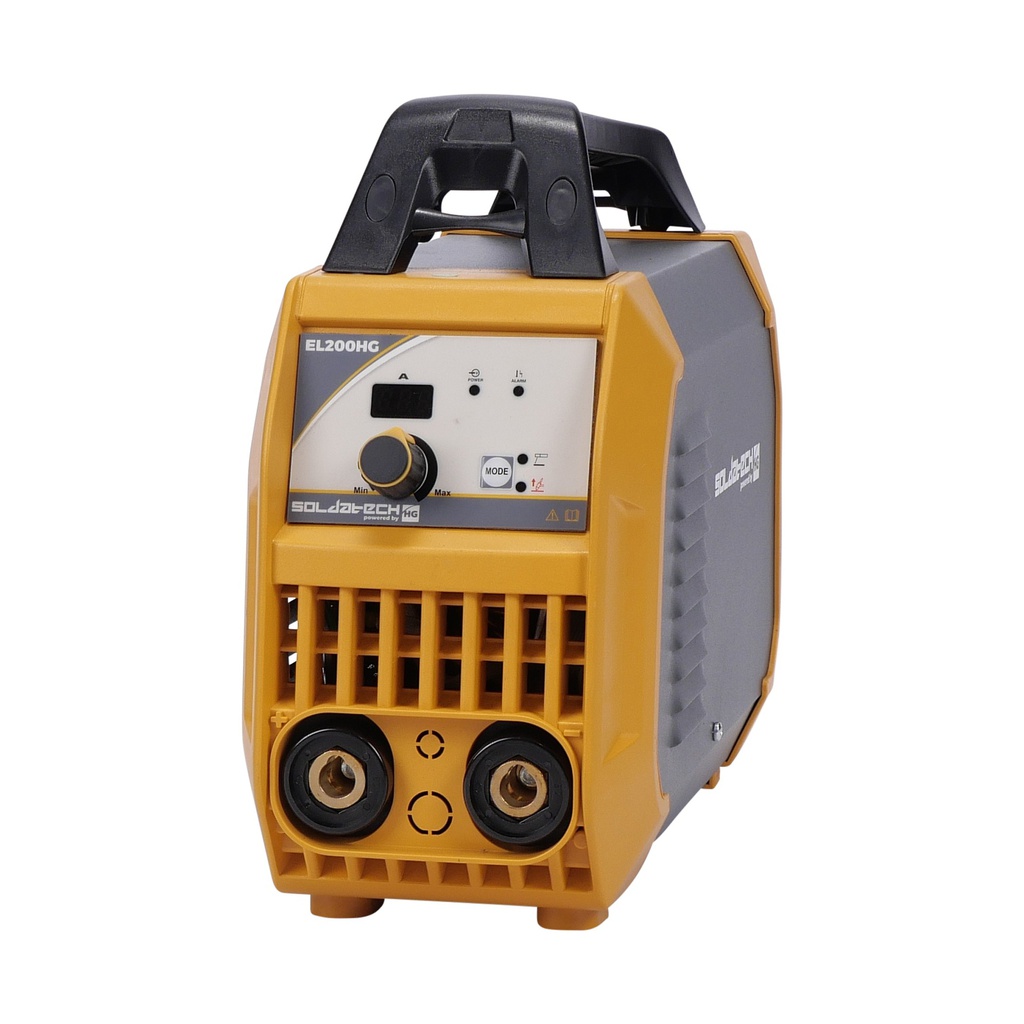

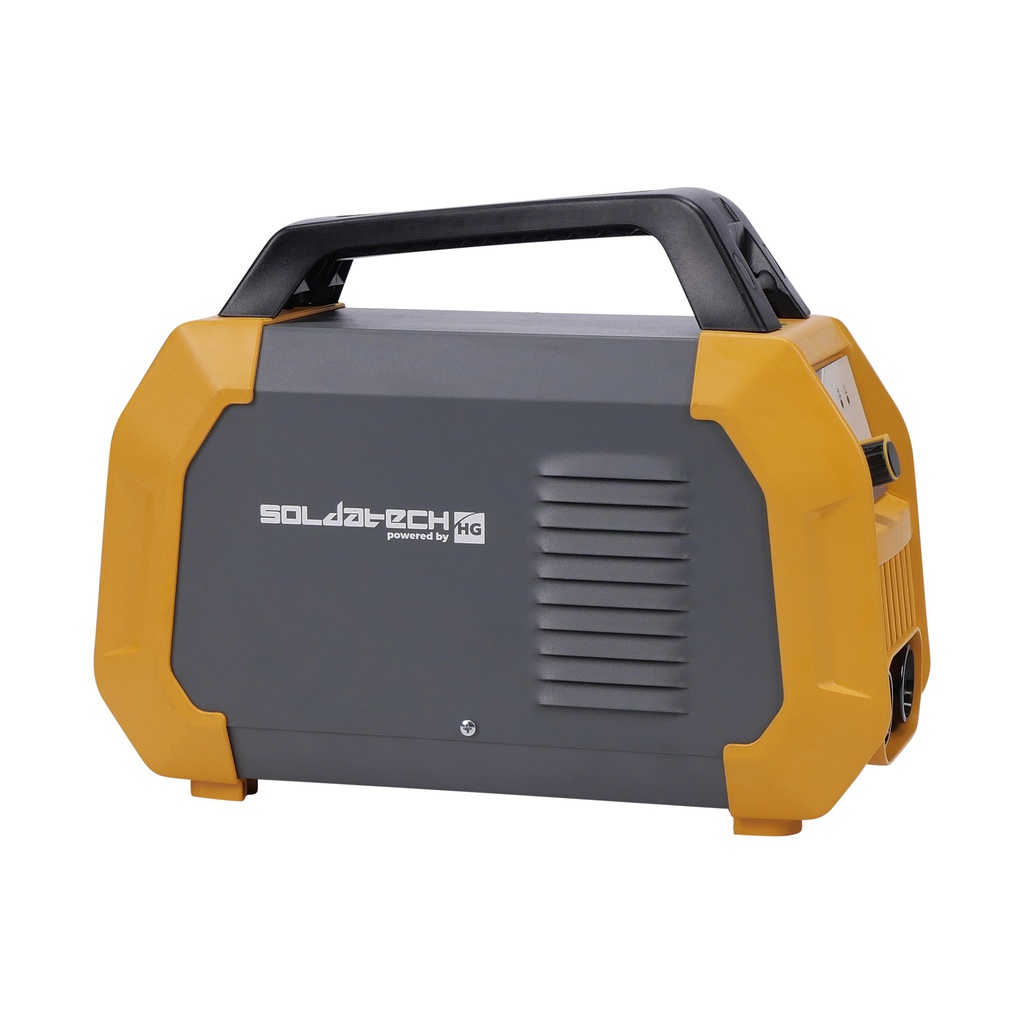

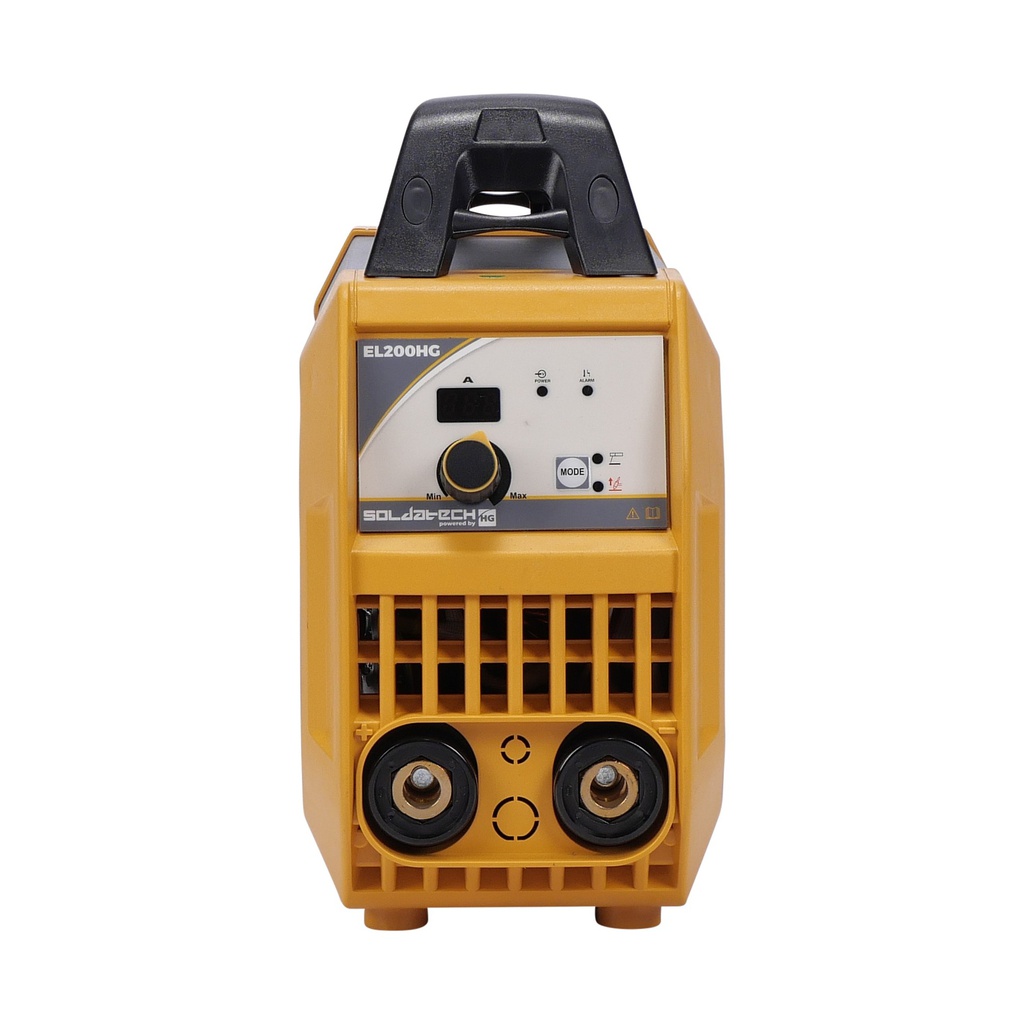

EL200HG

Electrode welding inverter / welder / welding machine / welding device

This Soldatechpowered by HG electrode welding machine is very suitable for welding at any location because of its compact, light, manageable and powerful design.

The easily adjustable welding current ensures that the EL200HG can be used quickly for welding jobs with different materials and thicknesses. Lift TIG welding is also possible with this device, but a different torch is then required, naturally.

The hot-start / anti-stick function quickly increases the welding current so that the electrode does not stick to the workpiece. The device is also equipped with an ARC force function; this sets the weld depth.

The modern IGBT inverter technology not only ensures that the EL200HG delivers long-lasting performance with more power, but it also makes the device lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Ideal for welding carbon steel, low alloy steel and stainless steel. Welds perfectly with rutile (E 6013) and basic (E 7018).

Each EL200HG comes standard with:

  • Twistlock electrode torch with 3m 16mm² cable

  • Welding ground clamp with 2m 16mm² cable

  • Neoprene power with 2m 3x2.5mm² cable

  • European dinse couplers 13mm

  • Sturdy storage case

Specifications:

  • Frequency
    50/60 Hz

  • Voltage
    230V - 1 Phase

  • No load Voltage
    82V

  • Input power
    8.8kVA

  • Circuit breaker
    16A C-char

  • Duty cycle @20C
    40% - 200A

  • Welding current range
    MMA 41-200A / TIG 15 - 200A

  • Duty cycle @40C
    15% - 200A

  • Welding electrodes
    1.6 - 4.0mm

  • Protection class
    IP21S

  • Dimensions
    400.0mm x154.0mm x300.0mm

  • Weight
    5.8Kg

Strongpoints:

  • High quality Twistlock electrode holder

  • Lift-TIG function

  • Infinitely adjustable

  • Sturdy storage case

  • 5 years warranty


Downloads:

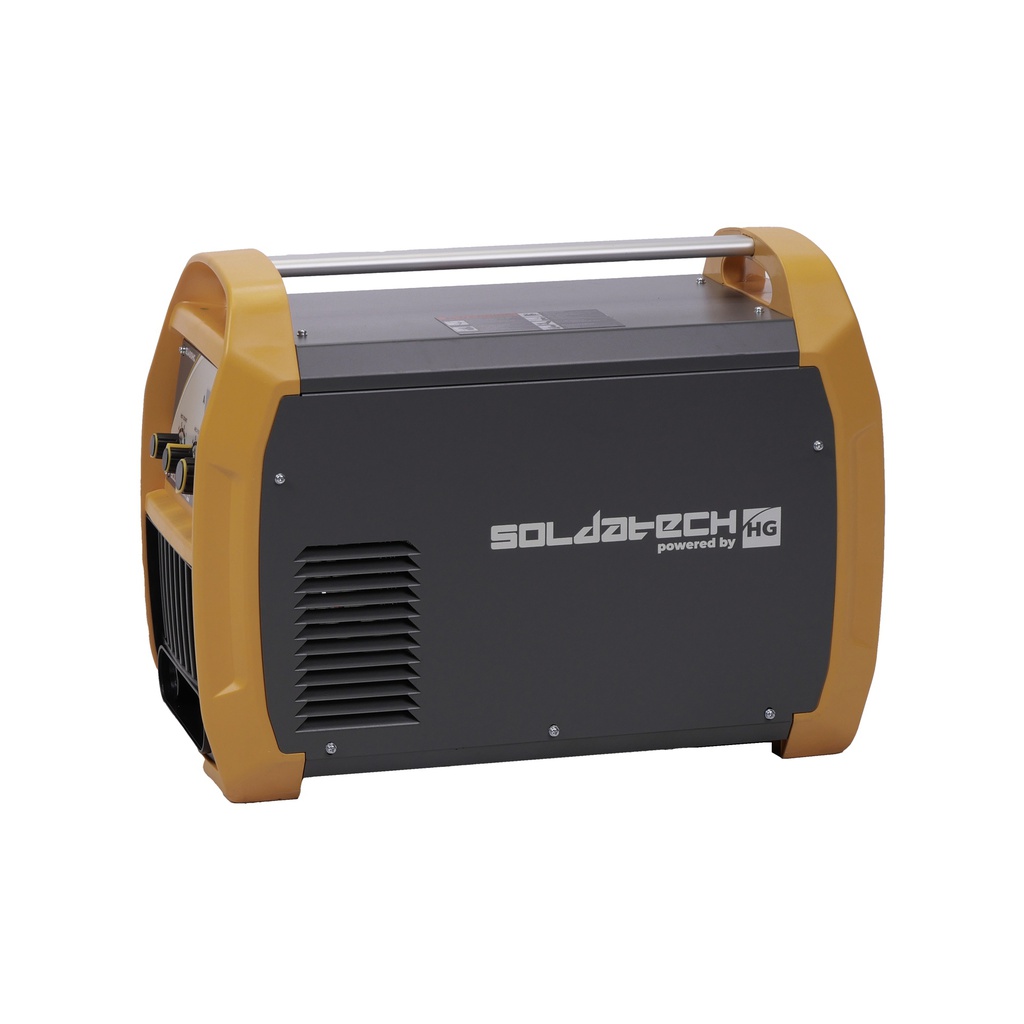

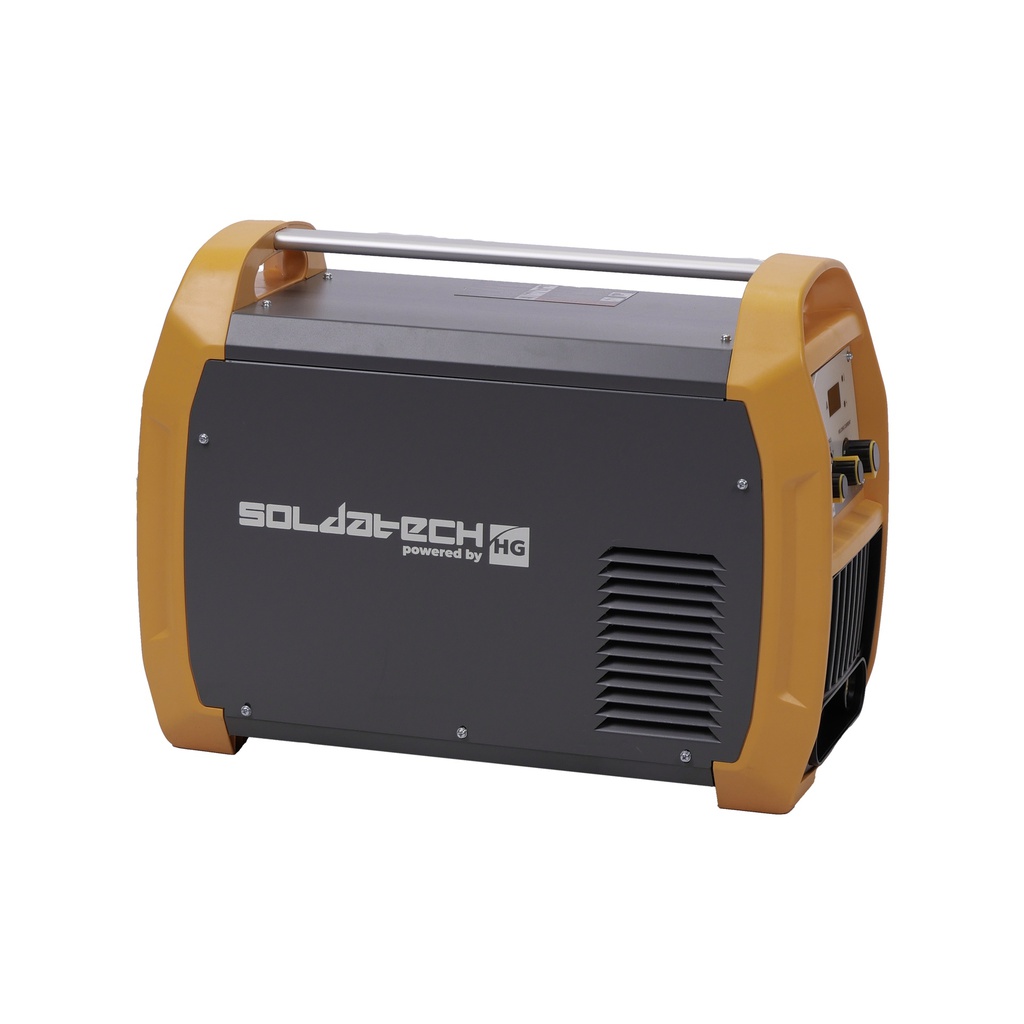

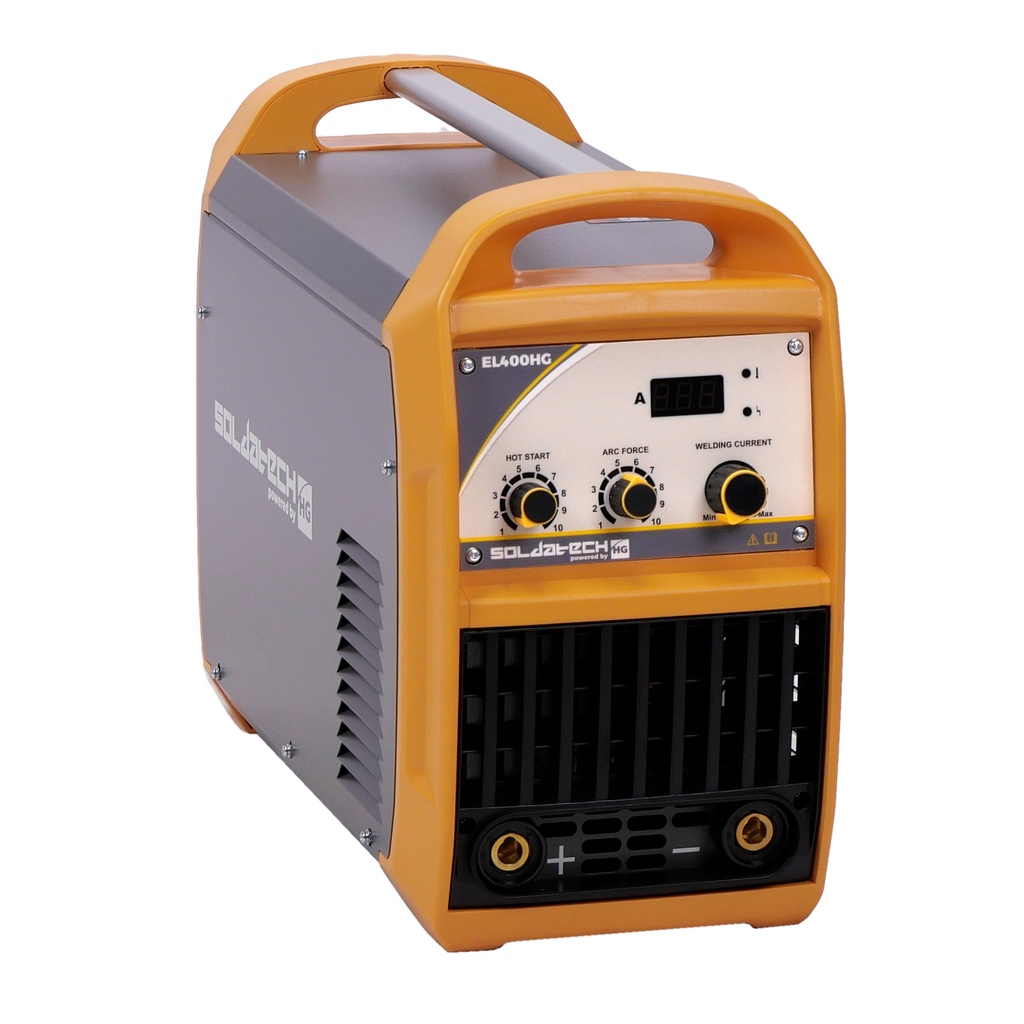

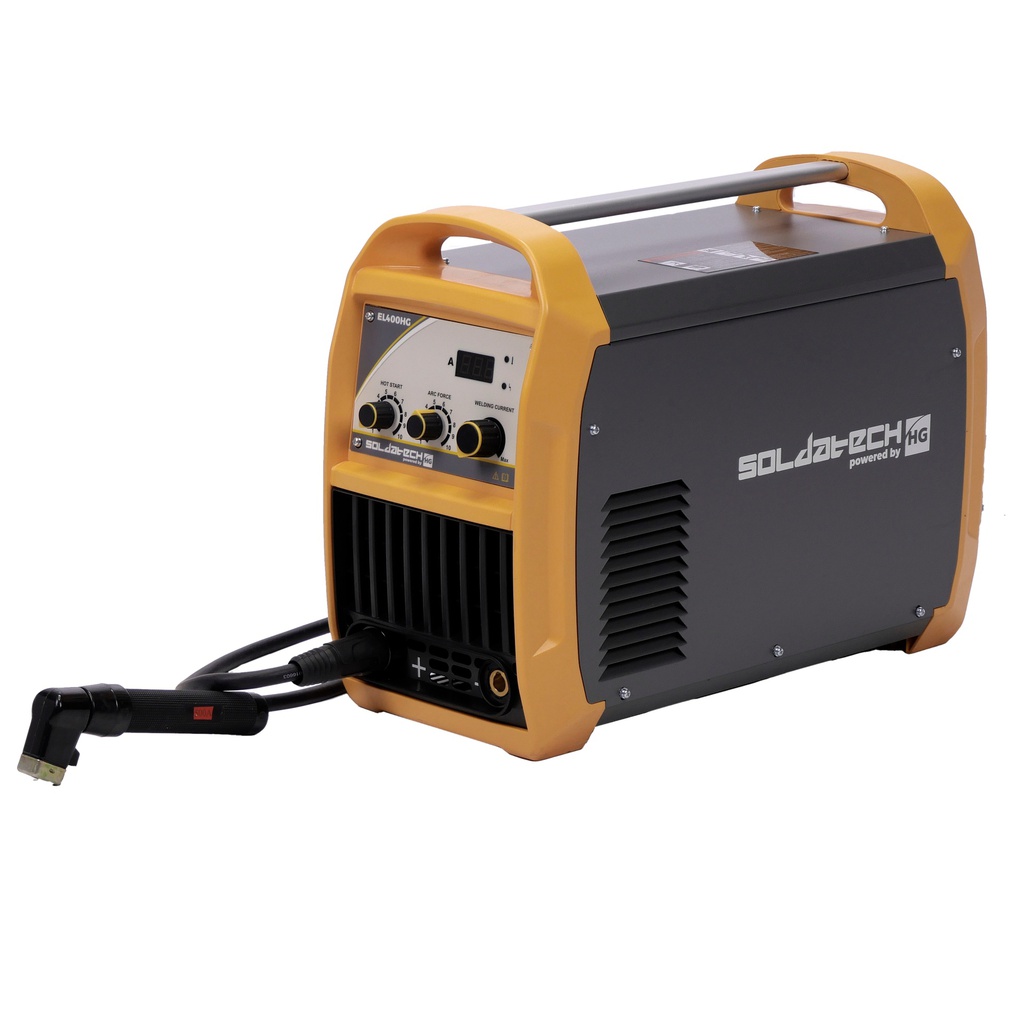

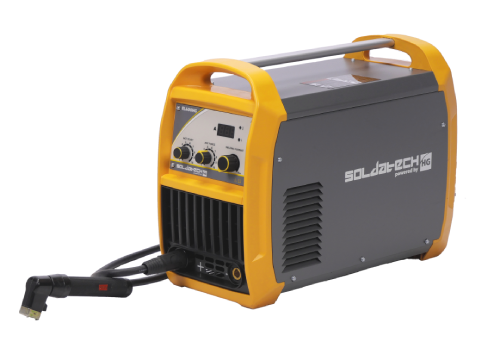

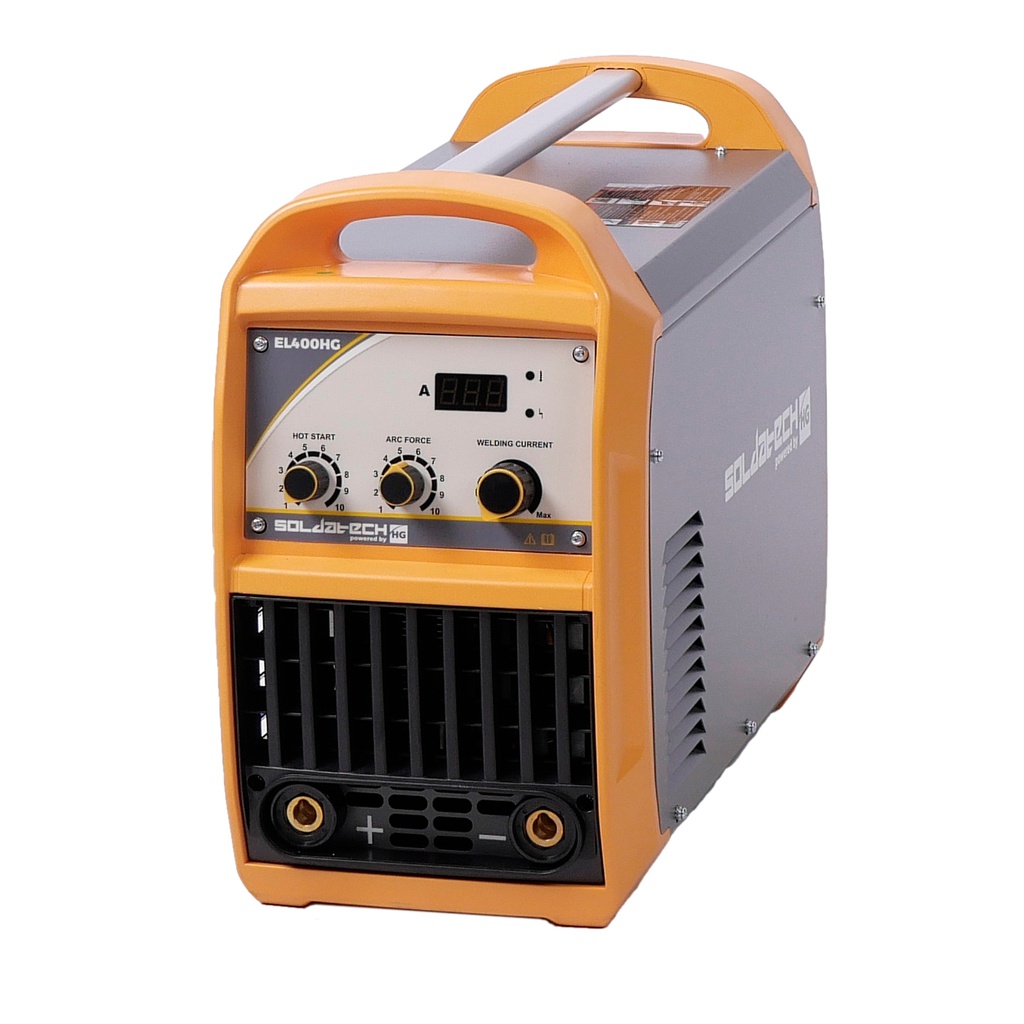

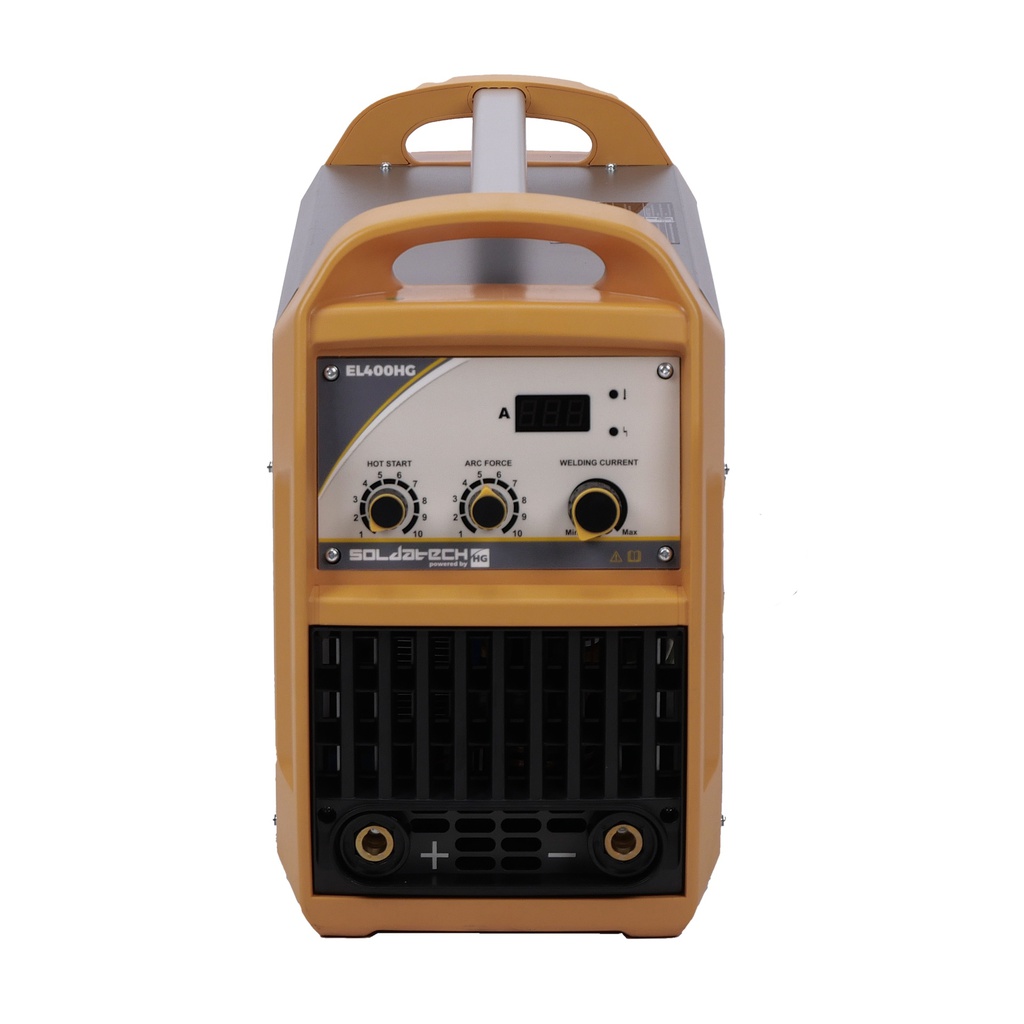

EL400HG

Electrode welding inverter / welder / welding machine / welding device

This Soldatechpowered by HG electrode welding machine is the most powerful among electrode welding machines. Professional and high-quality performance can be delivered quickly with this mobile machine.

The EL400HG is equipped with all the important functions for an electrode welding machine to make welding as easy as possible, e.g. the ARC force function, which sets the weld depth. The hot-start / anti-stick function quickly increases the welding current so that the electrode does not stick to the workpiece.

The easily adjustable welding current ensures that the EL400HG can be used quickly for welding jobs with different materials and thicknesses.

The modern IGBT inverter technology not only ensures that the EL400HG delivers long-lasting performance with more power, but it also makes the welder lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Ideal for welding carbon steel, low alloy steel and stainless steel. Welds perfectly with rutile (E 6013) and basic (E 7018).

Each EL400HG comes standard with:

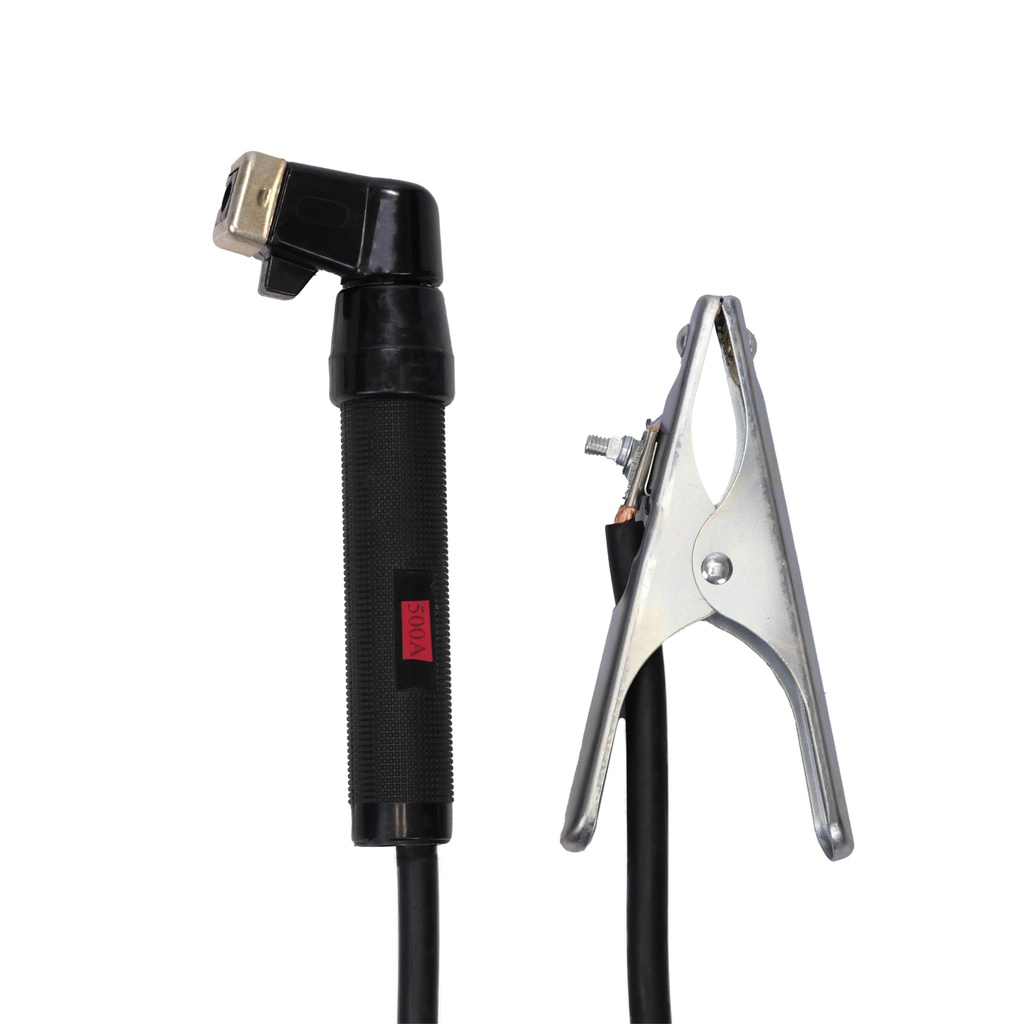

  • Twistlock electrode torch with 5m 35mm² cable

  • Welding ground clamp 500A with 3m 35mm² cable

  • 5-pin 32A plug with 2.5m 4x4.0mm² cable

  • European dinse couplers 13mm

Specifications:

  • Frequency
    50/60 Hz

  • Voltage
    400V - 3 Phase

  • No load Voltage
    82V

  • Input power
    19kVA

  • Circuit breaker
    3x 16A C-char

  • Duty cycle @20C
    60% - 400A

  • Welding current range
    15 - 400A

  • Duty cycle @40C
    25% - 400A

  • Welding electrodes
    1.6 - 4.0mm

  • Protection class
    IP21S

  • Dimensions
    550.0mm x245.0mm x430.0mm

  • Weight
    24.5Kg

Strongpoints:

  • High quality Twistlock 500A electrode holder

  • Infinitely adjustable

  • High load capacity and welding capacity

  • ABS shock resistant housing

  • 5 years warranty
