TIG WELDING MACHINES

TL200HG

TL200PHG

TL200ACHG

TL315ACHG

YOU'LL NEVER WELD ALONE!

The TIG welding process makes it possible to weld controllably with a very low current. Ideal for making high quality welds on thin materials such as pipes, pressure vessels and ornaments. Unlike MIG/MAG and MMA welding, TIG welding produces almost no splashes. This results in minimal post-processing.

All Soldatech powered by HG TIG welders are infinitely adjustable, easy to operate and equipped with both pulse and HF ignition. The digital display clearly shows the functions and the sequence of the welding process on the basis of a diagram.

All Soldatech by HG TIG welding machines are equipped with the following functions:

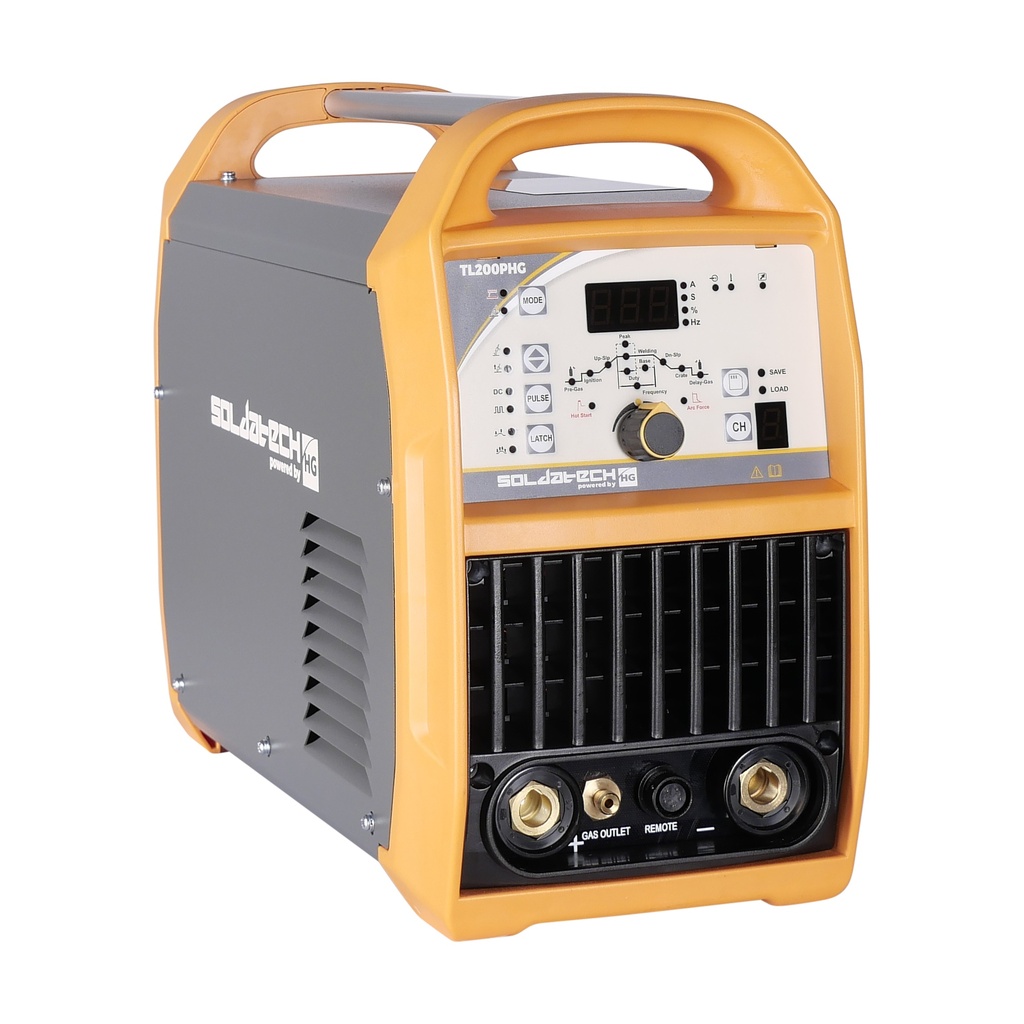

TL200PHG

TIG welding inverter 200A / IGBT TIG DC inverter / welding machine / welding machine

This portable Soldatech powered by HG TIG welding machine is a handy and easy-to-handle device that processes a huge range of materials with different welding processes including Pulse, TIG and MMA welding. With the adjustment and selection buttons it is easy to set all parameters of the TL200PHG in the right way, so that every welding job is completed with high-quality results.

The modern IGBT inverter technology ensures that the TL200PHG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time. The digital infinitely adjustable display clearly shows the welding processes and possibilities. Thanks to the HF ignition, the device starts up without any problems at all times.

The supplied TLT26M4 flex torch has a flexible head that allows TIG welding in any position. The TIG torch is also equipped with remote control with which the ampere range can be variably adjusted during welding. The hot-start/anti-stick function quickly increases the welding current, so that the electrode does not stick to the workpiece during ARC welding. Ideal for welding stainless steel, carbon steel, low alloy steel and copper.

Every TL200PHG is supplied as standard including:

  • Soldatech TLT26M4 remote flex TIG torch with 4m cable

  • Welding ground clamp with 3m 16mm² cable

  • European dinse couplers 13mm

  • 3m gas line including quick coupling

  • 3-pin 32A plug with 1m 3x4mm² cable



Specifications:

  • Frequency
    50/60 Hz

  • Voltage
    230V - 1 Phase

  • No load Voltage
    82V

  • Input power
    8.7kVA

  • Circuit breaker
    16A B-char

  • Duty cycle @20C
    40% - 200A

  • Welding current range
    MMA 20 - 180A / DC TIG 10 - 200A

  • Duty cycle @40C
    30% - 200A

  • Protection class
    IP21S

  • Dimensions
    460.0mm x200.0mm x340.0mm

  • Weight
    9.5Kg

Strongpoints:

  • Flexible Torch with Torch Control

  • Pulse function

  • Infinitely adjustable

  • ABS shockproof housing

  • 5 years warranty


Downloads:

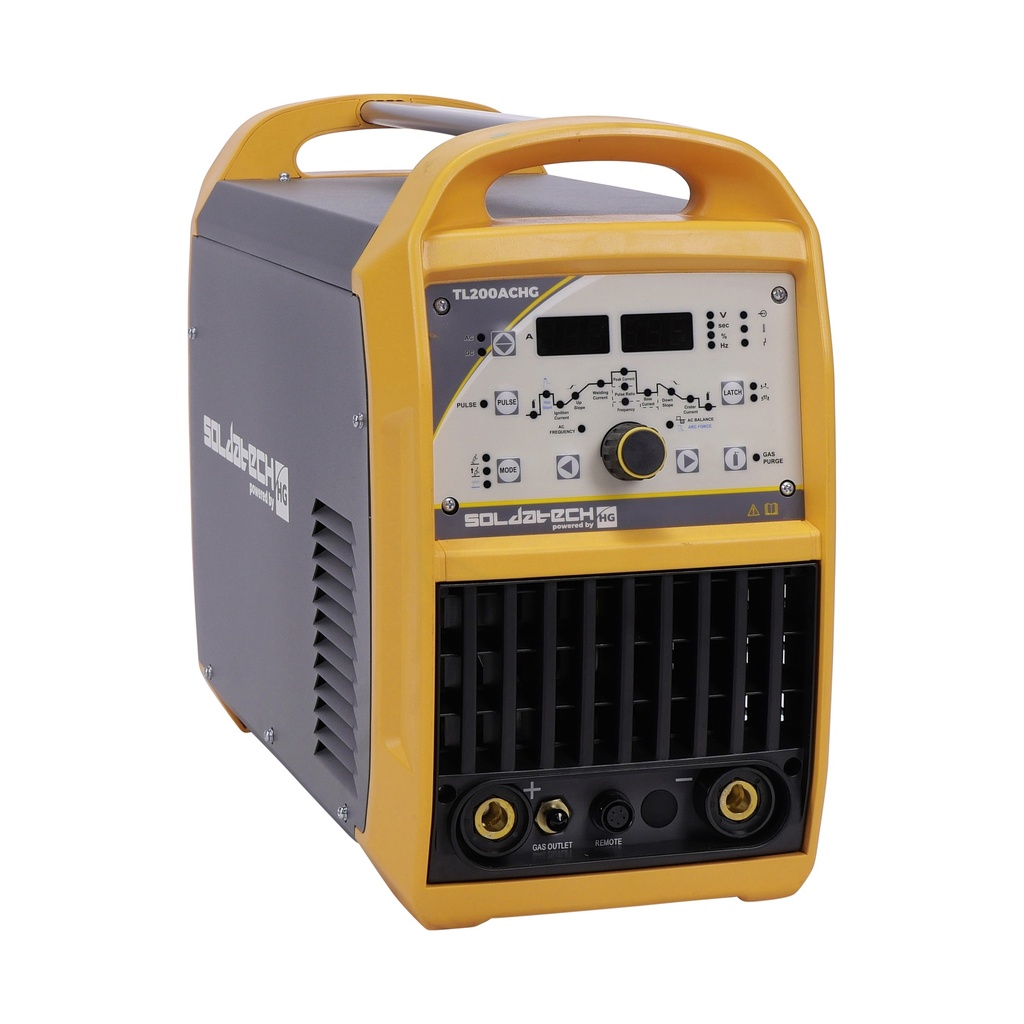

TL200ACHG

TIG AC / DC welding inverter 200A / IGBT TIG AC / DC inverter / welder / welding machine

This portable Soldatech powered by HG TIG welding machine is a convenient and easy to use device that is capable of handling a wide range of materials with different welding processes, including AC/DC Pulse, TIG and MMA welding. The adjustment and selection buttons allow for all parameters of the TL200ACHG to be easily set correctly, so that every welding job can be completed with high-quality results.

The modern IGBT inverter technology ensures that the TL200ACHG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures high-quality welding performance over a long period of time.

The infinitely adjustable digital display shows the welding processes and options very clearly. The HF ignition ensures that the device starts up without any problems at all times.

The supplied TLT24M4 flex torch has a flexible head that allows TIG welding in any position. The TIG torch is also equipped with remote control with which the ampere range can be variably adjusted during welding.

The hot-start/anti-stick function increases the welding current quickly, thereby preventing the electrode from sticking to the workpiece during ARC welding.

Ideal for welding aluminum stainless steel, carbon steel, low alloy steel, copper and special aluminum alloys.

Each TL200ACHG comes standard with:

  • Soldatech TLT26M4 remote flex TIG torch with 4m cable

  • Welding ground clamp with 3m 16mm² cable

  • European dinse couplers 13mm

  • Gas line including quick coupling 3m

  • 3-pin 32A plug with 2m 3x4mm² cable



Specifications:

  • Frequency
    50/60 Hz

  • Voltage
    230V - 1 Phase

  • No load Voltage
    68V

  • Input power
    8.05kVA

  • Circuit breaker
    16A B-char

  • Duty cycle @20C
    35% - 200A

  • Welding current range
    MMA 5 - 170A / DC TIG 5 - 200A / AC TIG 10 - 200A

  • Duty cycle @40C
    35% - 200A

  • Protection class
    IP21S

  • Dimensions
    508.0mm x241.0mm x408.0mm

  • Weight
    19.5Kg

Strongpoints:

  • Flexible torch with bendable head

  • AC/DC Pulse function

  • Infinitely adjustable

  • ABS shock resistant housing

  • 5 years warranty


Downloads:

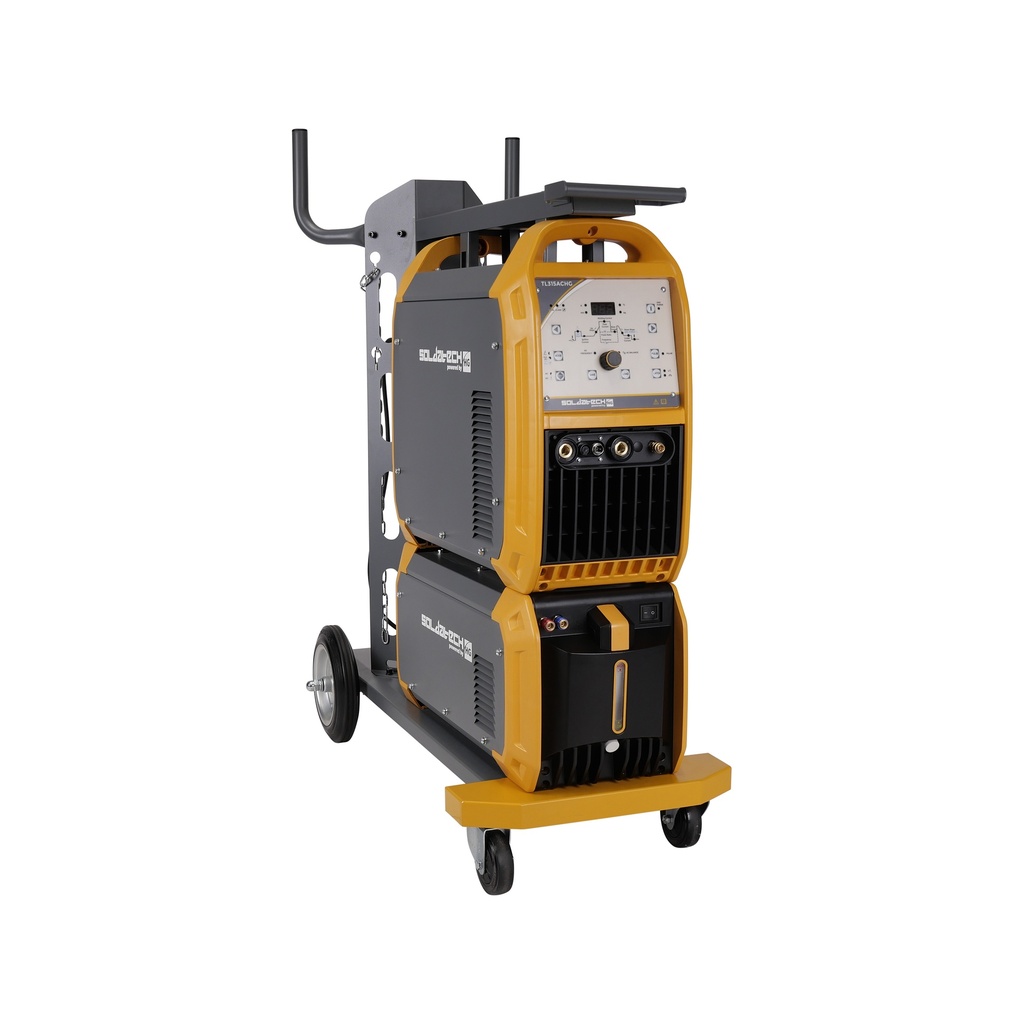

TL315ACHG

TIG AC/DC welding inverter 315A / IGBT TIG AC/DC inverter / welding machine

This Soldatech powered by HG TIG welding machine is standard equipped with a solid trolley that easily carries a 50L gas bottle and processes a huge range of materials with different welding processes including AC/DC Pulse, TIG and MMA welding. With the setting and selection buttons, all parameters of the TL315ACHG can easily be set in the correct way, so that every welding job is completed with high quality results.

The modern IGBT inverter technology ensures that the TL315ACHG delivers sustainable performance with more power and a high duty cycle. In addition, the TL315ACHG is equipped as standard with a powerful water cooler which prevents overheating in combination with a built-in fan and ensures that high-quality welding performance is guaranteed over a long period of time.

The digital continuously adjustable display shows very clearly the welding processes and possibilities. Thanks to the HF ignition, the device starts up smoothly at all times.

The supplied TLT18M4 torch is equipped with water cooling for a long service life when welding with high amperage.

Due to the hot-start / anti-stick function, the welding current is quickly increased, so that the electrode does not stick to the workpiece during ARC welding.

Ideal for welding aluminum, stainless steel, carbon steel, low alloy steel, copper and special aluminum alloys.

Every TL315ACHG comes standard including:

  • Water-cooled Soldatech TLT18M4 TIG torch with 4m cable

  • Welding ground clamp with 3m 25mm² cable

  • European dinse couplers 13mm

  • Gas line including quick coupling of 4m (8mm inner diameter)

  • 5-pin 32A plug with 2m 4x2.5mm² cable

  • Wear parts = 3x collet (1.6 / 2.0 / 2.4mm), 1x collet chuck 3.2mm, 3x gas nozzle (6, 7, 8mm), 1x insulation ring, 1x sealing cap short and 1 sealing cap long



Specifications:

  • Frequency
    50/60 Hz

  • Voltage
    400V - 3 Phase

  • No load Voltage
    70V

  • Input power
    13.8kVA

  • Circuit breaker
    25A B-char

  • Cooling unit content
    6L

  • Duty cycle @20C
    60% - 315A

  • Welding current range
    DC TIG 10A - 315A / AC TIG 20A - 315A / MMA 20A - 250A

  • Duty cycle @40C
    35% - 315A

  • Protection class
    IP21S

  • Dimensions
    1110.0mm x520.0mm x1265.0mm

  • Weight
    94.0Kg

Strongpoints:

  • AC / DC

  • Pulse function

  • Including water cooling

  • Equipped with database

  • 5 years warranty


Downloads:
